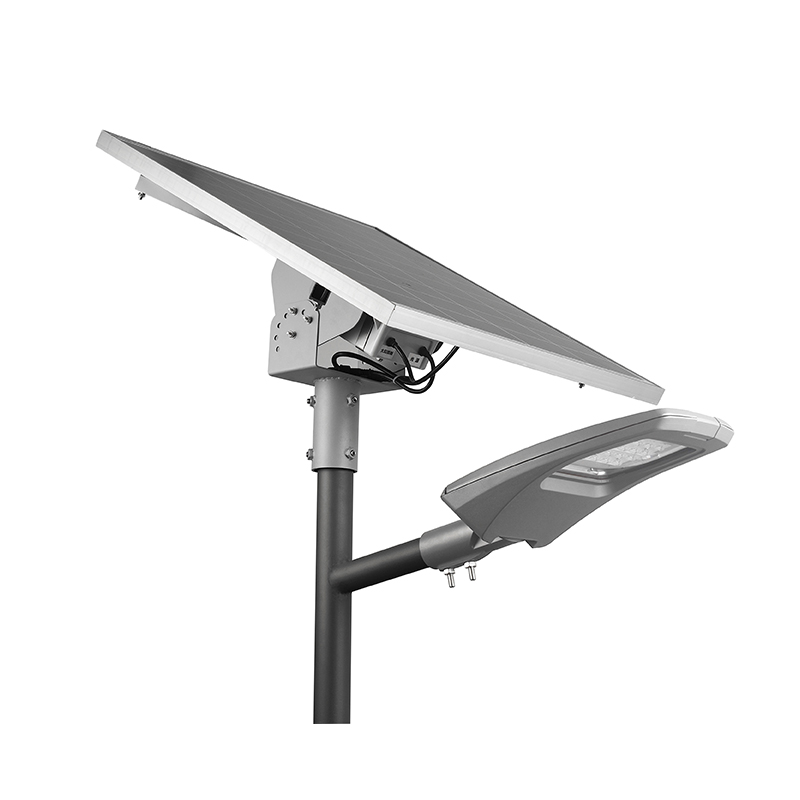

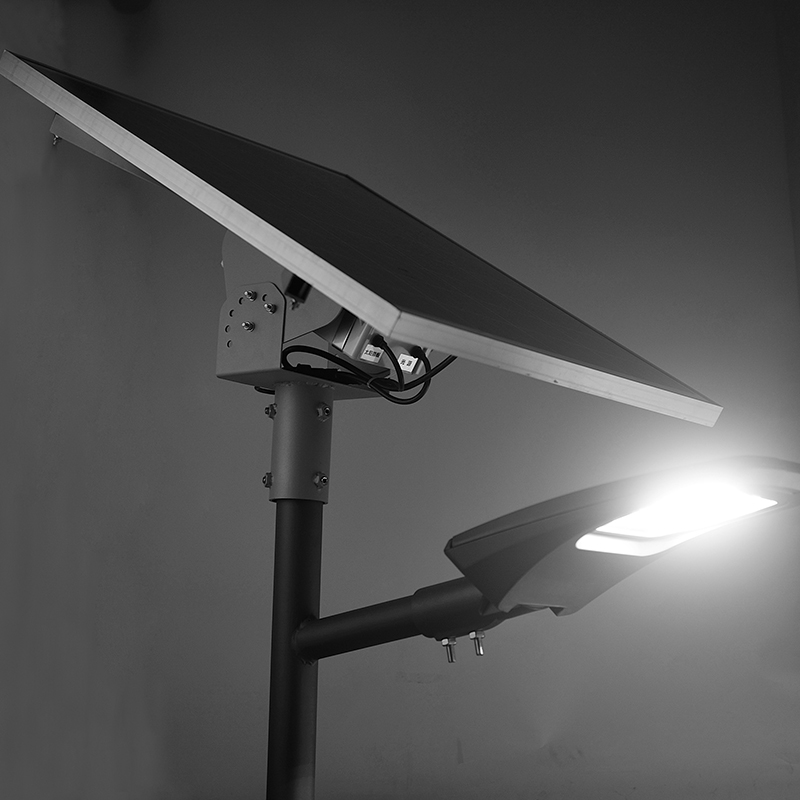

The YMLED-6801 is a solar-powered LED street light with an integrated intelligent control system, manufactured by a company in Ningbo. Designed for outdoor applications such as municipal roads, rural highways, and park main roads, it combines energy efficiency with intelligent control capabilities.
The lamp body is constructed from 6063-T5 die-cast aluminum, coated with a UV-resistant polyester powder coating, and supports RAL color customization. Optional features include over 1000 hours of salt spray corrosion resistance, IP65 dust and water resistance, and IK08 impact resistance, allowing it to withstand harsh outdoor environments such as rain, snow, and dust. The light source utilizes high-quality LEDs such as Philips 5050 and CREE XTE/XPG, with a selectable color rendering index of 70/80 and adjustable color temperature from 2200K to 6500K, meeting the lighting needs of various scenarios.
The product is compatible with a wide voltage range of AC 100-277 Vac, has a lifespan exceeding 50,000 hours at 25℃, and offers optional 10kV overvoltage protection. It supports dimming protocols such as DALI, 0-10V, and PWM, and can be connected to NEMA connectors, Zhaga interfaces, and various sensors to achieve intelligent brightness adjustment, remote monitoring, and other functions, making it an efficient and energy-saving modern outdoor lighting solution.
CRI Colour Rendering Index: 70,80(Optional)
LED Chips: Philips5050, CREE XTE, CREE XPG, Ledstar 5050 (selectable)
CCT: 2200K-6500K
RAL finish on request; anti-UV polyester powder coating surface, salt spray resistance over 1,000 hours (optional)
Body Material: Die-cast aluminium,6063-T5
Power supply: AC 100-277 Vac; 50/60 Hz.
Useful life > 50,000h (Ta= 25°C)
Waterproof Protection & Impact Protection Rating: IP65/IK08
Overvoltage protection: 10kV (optional)
Operating temperature: -30°C to +50°C.
Available options: DALI, 0-10V, PWM, 4Di.
Optional: 5- to 7-pin NEMA connector, Zhaga, and sensors
| Product Code | ![]() |
![]() |
![]() |
| YMLED-6801-20W | 20W | 60W | 30AH |
| YMLED-6801-30W | 30W | 80W | 40AH |
| YMLED-6801-40W | 40W | 100W | 50AH |
![]() |
![]() |
![]() |
| Material: PC
Angle: TYPE2
Chip: 5050 3030×4 7070
Size: 50×50
Order Code: 3292
|
Material: PC
Angle: TYPE3
Chip: 5050 3030×4 7070
Size: 50×50
Order Code: 3293
|
Material: PC
Angle: TYPE4
Chip: 5050 3030×4 7070
Size: 50×50
Order Code: 3294
|
![]() |
![]() |
|
| Material: PC
Angle: TYPE5
Chip: 5050 3030×4 7070
Size: 50×50
Order Code: 3295
|
Material: PC
Angle: 100×160
Chip: 5050 3030×4 7070
Size: 50×50
Order Code: 2581
|
RAL finish on request

Samples: Typically 7 working days.
Bulk Orders: Approximately 14-21 working days after receiving the deposit and confirming all specifications.
We accept payments in USD via T/T. The standard terms are:
30% deposit before production, 70% balance before shipment.
For orders below $1000 USD, full payment (100%) is required via T/T.
Our quotations are typically based on EXW or FOB trade terms.
Yes, we offer professional OEM/ODM customization services to meet specific requirements in product design, performance, and packaging.
With extensive experience in non-standard customized products, our engineering team is able to provide technical solutions and initial feedback within 12 hours.
Standard packaging includes brown outer cartons and brown inner boxes.
For orders of any quantity, we offer customization services, including: Laser-engraved logos on the lamp body. Custom-designed color boxes and cartons with your logo.
Considering that most of our customers are involved in engineering projects, we don't have an MOQ.
Our products comply with international standards, with CE and RoHS certifications for all categories. Some of the garden lights and street lamps also have ETL and ENEC certifications.
