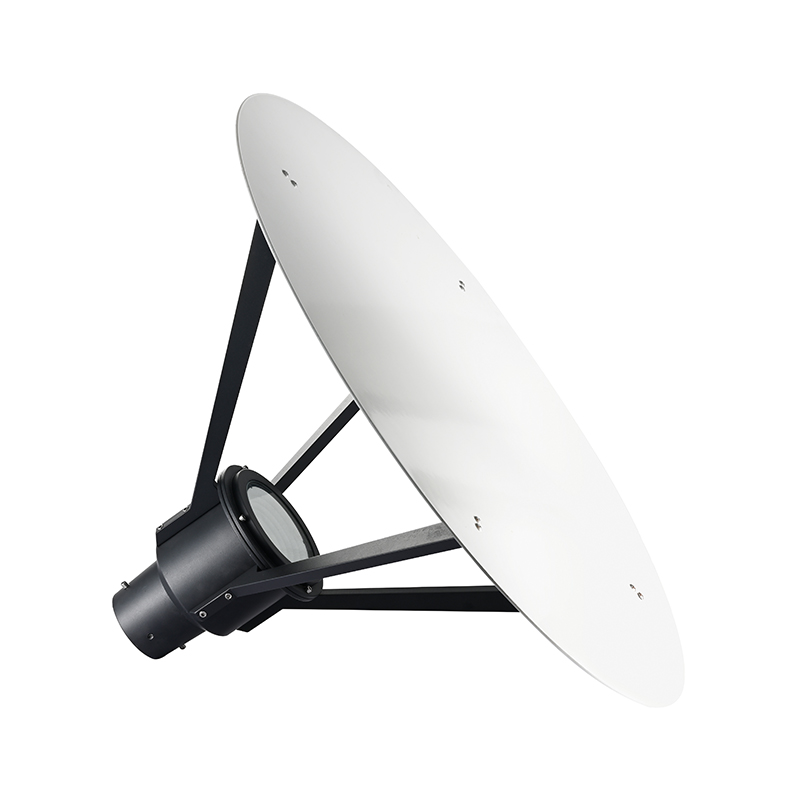

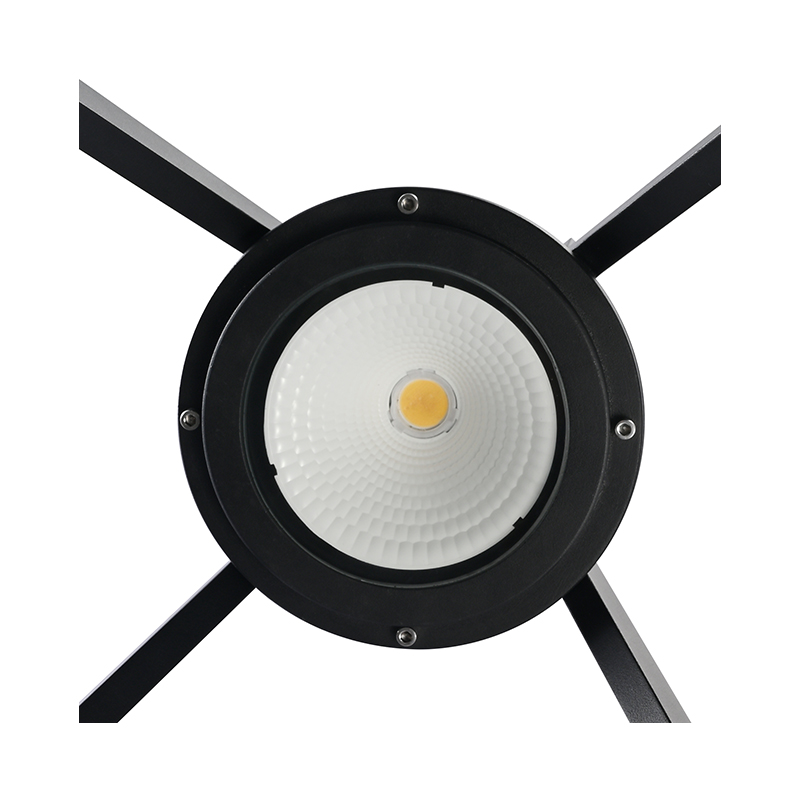

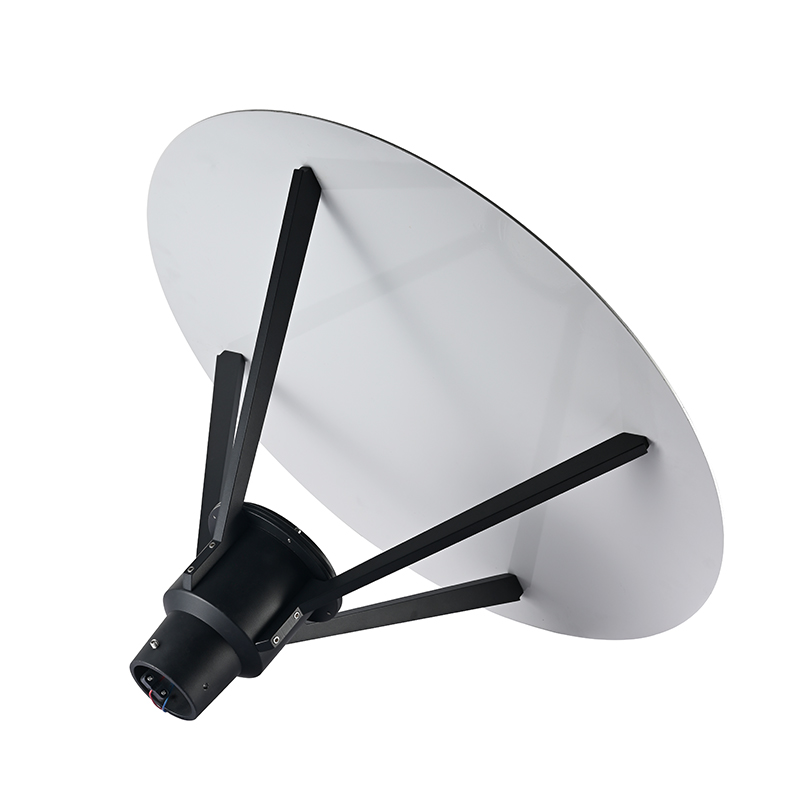

The YMLED-6146 is an LED lighting fixture specifically designed for courtyards, streets, and parks. It features a reflective optical design that provides efficient and uniform light distribution, meeting the lighting needs of outdoor public areas.
The lamp body is constructed from die-cast aluminum 6063-T5, with a customizable RAL color system and UV-resistant polyester powder coating. Optional anti-corrosion treatment exceeding 1000 hours of salt spray resistance is available, ensuring durability and suitability for various complex outdoor environments. It boasts an IP65/IK08 protection rating, making it resistant to wind, rain, and external impacts.
In terms of light source configuration, it supports various high-quality LED chips such as Philips 5050 and CREE XTE/XPG. The color temperature can be flexibly selected between 2200K and 6500K, and the color rendering index (CRI) can be 70 or 80, allowing for both warm and bright lighting effects. The fixture has a wide power supply range (AC 100-277 Vac), a lifespan exceeding 50,000 hours at 25℃, and optional 110kV overvoltage protection for long-term stable operation.
To meet intelligent management needs, the fixture offers dimming protocols such as DALI, 0-10V, and PWM, as well as expansion options including NEMA connectors, Zhaga interfaces, and sensors. These features allow for flexible configuration based on project requirements, making it an ideal choice for modern outdoor lighting.
CRI Colour Rendering Index: 70,80(Optional)
LED Chips: CREE COB(CXA 2540 / CMB 2550 Pro 9)
CCT: 2200K-6500K
Body Material: Die-cast aluminium,6063-T5
RAL finish on request; anti-UV polyester powder coating surface, salt spray resistance over 1,000 hours (optional)
Power supply: AC 100-277 Vac; 50/60 Hz.
Useful life > 50,000h (Ta= 25°C)
Waterproof Protection & Impact Protection Rating: IP65/IK08
Overvoltage protection: 10kV (optional)
Operating temperature: -30°C to +50°C
Net weight: 10/8.5(kgs)
Available options: DALI, 0-10V, PWM, 4Di.
Optional: 5- to 7-pin NEMA connector, Zhaga, and sensors
| Product Code | Rated Power | Luminous Flux | G.W/N.W |
| YMLED-6146 | 30W | 3240 | 10/8.5(kgs) |
| YMLED-6146 | 40W | 4320 | 10/8.5(kgs) |
| YMLED-6146 | 55W | 5940 | 10/8.5(kgs) |
RAL finish on request

Samples: Typically 7 working days.
Bulk Orders: Approximately 14-21 working days after receiving the deposit and confirming all specifications.
We accept payments in USD via T/T. The standard terms are:
30% deposit before production, 70% balance before shipment.
For orders below $1000 USD, full payment (100%) is required via T/T.
Our quotations are typically based on EXW or FOB trade terms.
Yes, we offer professional OEM/ODM customization services to meet specific requirements in product design, performance, and packaging.
With extensive experience in non-standard customized products, our engineering team is able to provide technical solutions and initial feedback within 12 hours.
Standard packaging includes brown outer cartons and brown inner boxes.
For orders of any quantity, we offer customization services, including: Laser-engraved logos on the lamp body. Custom-designed color boxes and cartons with your logo.
Considering that most of our customers are involved in engineering projects, we don't have an MOQ.
Our products comply with international standards, with CE and RoHS certifications for all categories. Some of the garden lights and street lamps also have ETL and ENEC certifications.
