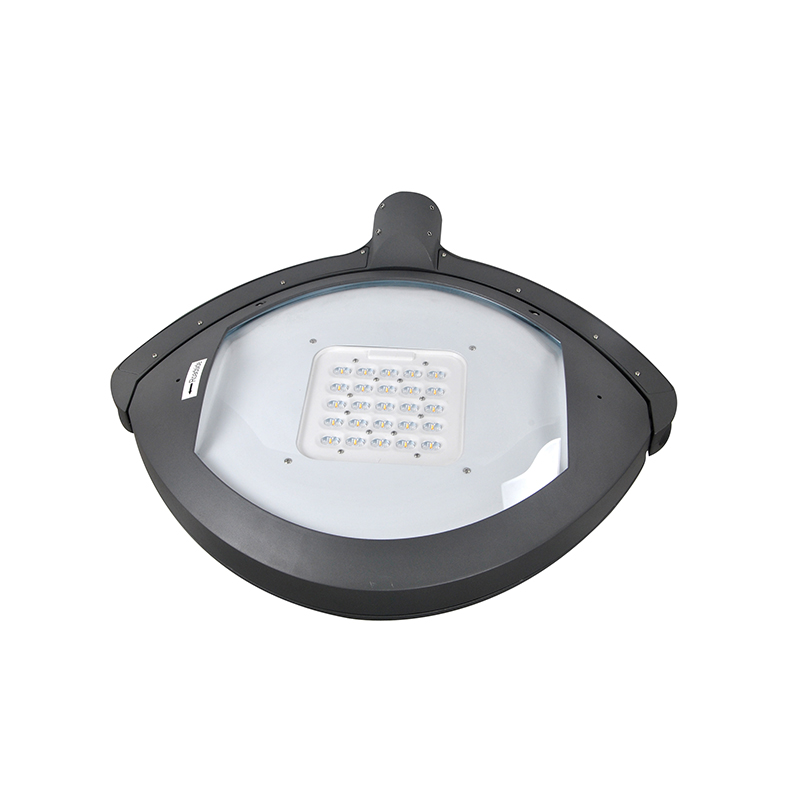

YMLED-6113B Post Top Park Light Outdoor Led Garden Lamp

The YMLED-6113B is a top-mounted LED streetlight designed for parks and outdoor gardens, combining aesthetics and practicality. It utilizes high-quality LED chips such as Philips 5050, CREE XTE, CREE XPG, or Ledstar 5050, offering a selectable CRI (Color Rendering Index) of 70 or 80, with a color temperature range of 2200K to 6500K to meet the lighting needs of various scenarios.

The luminaire body is made of die-cast aluminum (6063-T5), supports RAL color card customization, and features a UV-resistant polyester powder coating. Optional corrosion resistance treatment with over 1000 hours of salt spray testing is available. Power supply is compatible with AC 100-277Vac, 50/60Hz, with a lifespan exceeding 50,000 hours at 25°C.

Protection levels include IP65 dust and water resistance and IK08 impact resistance, with an operating temperature range of -30°C to +50°C. Optional features include 110kV overvoltage protection, 1DALI/0-10V/PWM/4Di dimming interface, 15-7 pin NEMA/Zhaga connector and sensor integration, and a net weight of 16.2/14.2 kg, making it a reliable choice for park and garden lighting.

CRI Colour Rendering Index: 70,80(Optional)
LED Chips: Philips5050, CREE XTE, CREE XPG, Ledstar 5050
CCT: 2200K-6500K
Body Material: Die-cast aluminium,6063-T5
RAL finish on request; anti-UV polyester powder coating surface, salt spray resistance over 1,000 hours (optional)
Power supply: AC 100-277 Vac; 50/60 Hz.
Useful life >  50,000h (Ta= 25°C)
Waterproof Protection & Impact Protection Rating: IP65/IK08
Overvoltage protection: 110kV (optional)
Operating temperature: -30°C to +50°C
Net weight: 16.2/14.2(kgs)
Available options: DALI, 0-10V, PWM,  4Di.
Optional: 5- to 7-pin NEMA connector, Zhaga, and sensors

Product Code Rated Power LED Qty Luminous Flux G.W/N.W Packing Size Loading Qty
YMLED-6113B(16) 30W 16 3600 16.2/14.2(kgs) 715x685x280mm 192PCS/20'GP
459PCS/40'HQ
YMLED-6113B(20) 40W 20 4800 16.2/14.2(kgs) 715x685x280mm
YMLED-6113B(24) 55W 24 6930 16.2/14.2(kgs) 715x685x280mm
Material: PC
Angle: TYPE2
Chip: 5050 3030×4 7070
Size: 50×50
Order Code: 3292
Material: PC
Angle: TYPE3
Chip: 5050 3030×4 7070
Size: 50×50
Order Code: 3293
Material: PC
Angle: TYPE4
Chip: 5050 3030×4 7070
Size: 50×50
Order Code: 3294
Material: PC
Angle: TYPE5
Chip: 5050 3030×4 7070
Size: 50×50
Order Code: 3295
Material: PC
Angle: 100×160
Chip: 5050 3030×4 7070
Size: 50×50
Order Code: 2581
  • IP65 IK08 Suitable for outdoor installation, with maximum impact resistance
  • DALI-2  Dimmable version available
  • RAL finish on request
