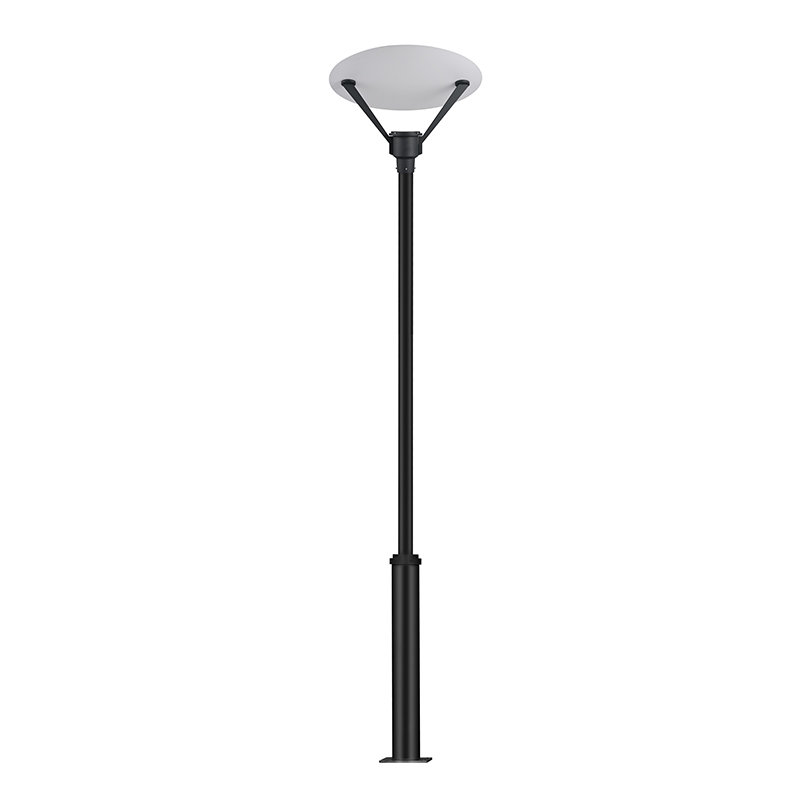

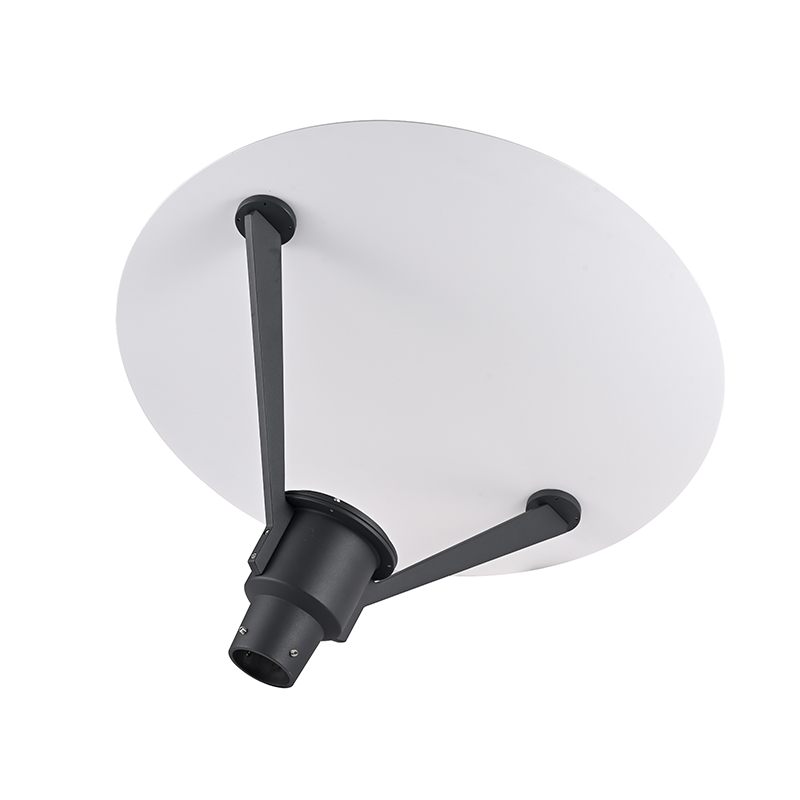

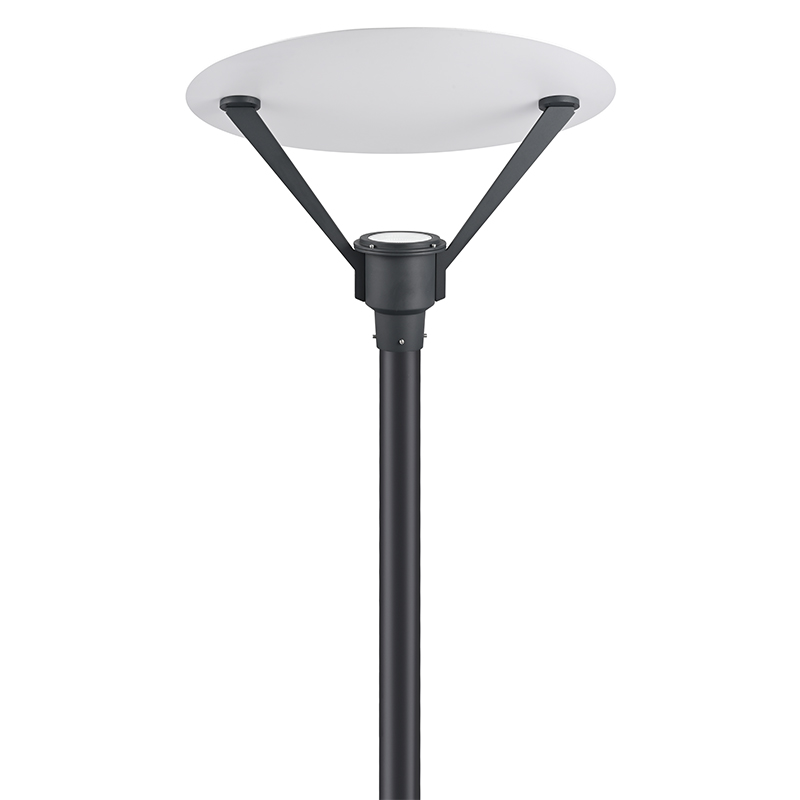

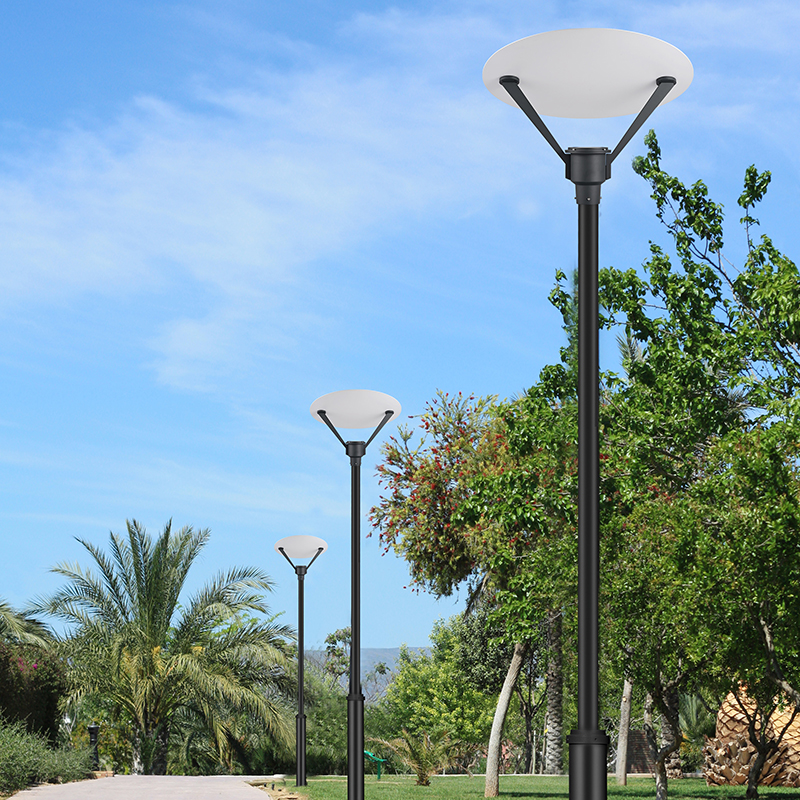

The YMLED-6146C is a high-quality AC-powered LED garden light designed for pathways, residential communities, parks, and commercial landscape projects. It combines modern architectural design with stable mains-powered performance, providing reliable and uniform outdoor illumination.
The fixture features a die-cast aluminum housing with UV-resistant polyester powder coating, supporting RAL color customization. With an IP65 protection rating and strong structural durability, it operates reliably in rain, dust, and various outdoor conditions.

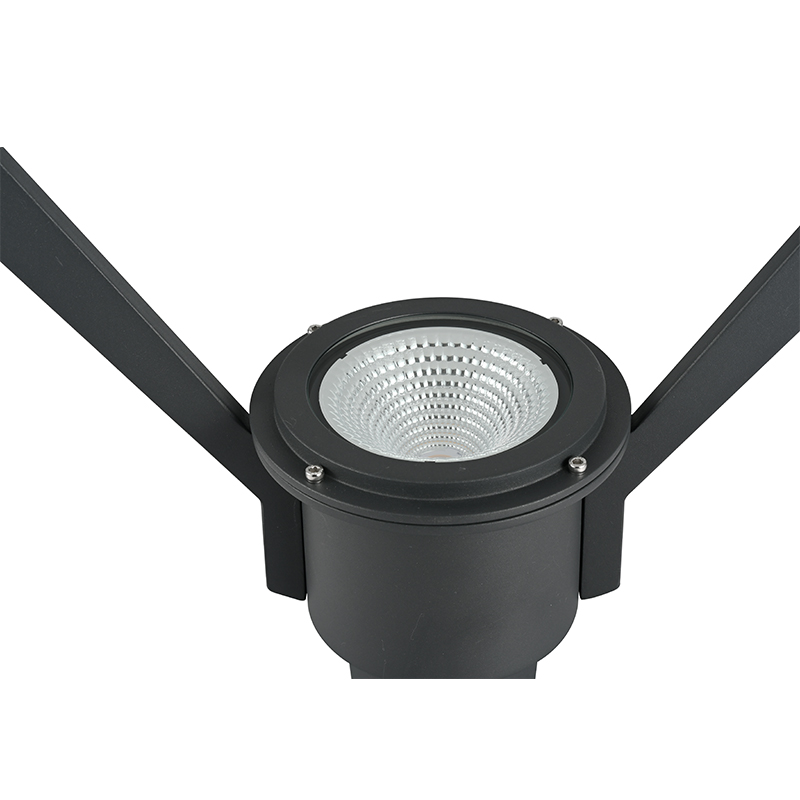

Equipped with a high-efficiency LED module and an optimized optical diffuser, the YMLED-6146C delivers comfortable, low-glare lighting suitable for long-term landscape applications.
CRI Colour Rendering Index: 70,80(Optional)
LED Chips: CREE COB(CXA 2540 / CMB 2550 Pro 9)
CCT: 2200K-6500K
RAL finish on request; anti-UV polyester powder coating surface, salt spray resistance over 1,000 hours (optional)
Body Material: Die-cast aluminium,6063-T5
Power supply: AC 100-277 Vac; 50/60 Hz.
Useful life > 50,000h (Ta= 25°C)
Waterproof Protection & Impact Protection Rating: IP65/IK08
Overvoltage protection: 10kV (optional)
Operating temperature: -30°C to +50°C.
Net weight: 10/8.5 (kgs)
Available options: DALI, 0-10V, PWM, 4Di.
Optional: 5- to 7-pin NEMA connector, Zhaga, and sensors
| Product Code | Rated Power | Luminous Flux | G.W/N.W (kgs) |
| YMLED-6146C | 30W | 3240 | 10/8.5 |
| YMLED-6146C | 40W | 4320 | 10/8.5 |
| YMLED-6146C | 55W | 5940 | 10/8.5 |
RAL and Height finish on request

Samples: Typically 7 working days.
Bulk Orders: Approximately 14-21 working days after receiving the deposit and confirming all specifications.
We accept payments in USD via T/T. The standard terms are:
30% deposit before production, 70% balance before shipment.
For orders below $1000 USD, full payment (100%) is required via T/T.
Our quotations are typically based on EXW or FOB trade terms.
Yes, we offer professional OEM/ODM customization services to meet specific requirements in product design, performance, and packaging.
With extensive experience in non-standard customized products, our engineering team is able to provide technical solutions and initial feedback within 12 hours.
Standard packaging includes brown outer cartons and brown inner boxes.
For orders of any quantity, we offer customization services, including: Laser-engraved logos on the lamp body. Custom-designed color boxes and cartons with your logo.
Considering that most of our customers are involved in engineering projects, we don't have an MOQ.
Our products comply with international standards, with CE and RoHS certifications for all categories. Some of the garden lights and street lamps also have ETL and ENEC certifications.
