YMLED-6135 Europe Style with PC Cover LED Post Top Lamp

Name: YMLED-6135 Europe Style with PC Cover LED Post Top Lamp
Rating: 5 (99 reviews)

The YMLED-6135 European-style LED post-top light features a highly distinctive upward-opening, trumpet-shaped lampshade design. The lampshade is made of high-transparency PC material, resembling blooming petals reaching upwards. Combined with the dark gray die-cast aluminum body, it presents a fusion of classic European street lamp aesthetics and modern minimalist lines. Its unique funnel shape not only provides soft, diffused light both upwards and downwards but also effectively expands the lighting range, creating elegant light and shadow layers at night.
This luminaire continues the series' industrial reliability, with a 6063-T5 die-cast aluminum body and a UV-resistant powder coating. RAL custom colors and enhanced salt spray protection are available. An IP65 protection rating and IK08 impact resistance ensure long-term stable operation in harsh outdoor environments. It utilizes high-efficiency LED modules from multiple brands, supporting 2200K-6500K color temperature adjustment and 70/80 high color rendering index options. Wide voltage input (AC 100-277V) and smart control compatibility (DALI/0-10V/PWM/4Di) make it suitable for post-top lighting scenarios in different regions, and it can be equipped with optional standardized interfaces (NEMA/Zhaga) and sensor modules for intelligent public lighting management.

PREV：YMLED-6135B High Luminous LED Garden Light New Design Park Post Top Lighting
NEXT：YMLED-6109 Post Top Landscape Lighting for Parking Lots

Characteristic

CRI Colour Rendering Index: 70，80（Optional）
LED Chips: Philips5050, CREE XTE, CREE XPG, Ledstar 5050
CCT: 2200K-6500K
Body Material: Die-cast aluminium，6063-T5
RAL finish on request; anti-UV polyester powder coating surface, salt spray resistance over 1,000 hours (optional)
Power supply: AC 100-277 Vac; 50/60 Hz.
Useful life > 50,000h (Ta= 25°C)
Waterproof Protection & Impact Protection Rating: IP65/IK08
Overvoltage protection: 10kV (optional)
Operating temperature: -30°C to +50°C
Net weight: 11.5/9.2(kgs)
Available options: DALI, 0-10V, PWM, 4Di.
Optional: 5- to 7-pin NEMA connector, Zhaga, and sensors

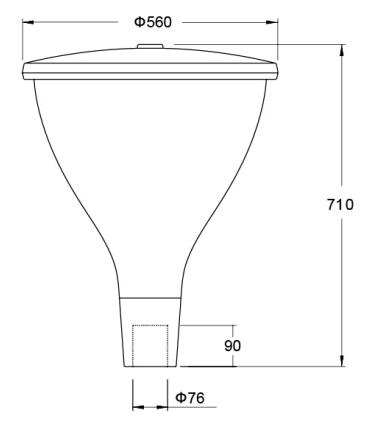

Product Dimensions

Technical Parameters

Product Code	Rated Power	LED Qty	Luminous Flux	G.W/N.W	Packing Size	Loading Qty
YMLED-6135(16)	30W	16	3600	11.5/9.2(kgs)	605x605x750mm	81PCS/20'GP 171PCS/40'HQ

YMLED-6135(20)	40W	20	4800	11.5/9.2(kgs)	605x605x750mm

YMLED-6135(24)	55W	24	6600	11.5/9.2(kgs)	605x605x750mm

YMLED-6135(28)	60W	28	7200	11.5/9.2(kgs)	605x605x750mm

YMLED-6135(32)	70W	32	8400	11.5/9.2(kgs)	605x605x750mm

Polar Diagram


Material: PC Angle: TYPE2 Chip: 5050 3030×4 7070 Size: 50×50 Order Code: 3292	Material: PC Angle: TYPE3 Chip: 5050 3030×4 7070 Size: 50×50 Order Code: 3293	Material: PC Angle: TYPE4 Chip: 5050 3030×4 7070 Size: 50×50 Order Code: 3294

Material: PC Angle: TYPE5 Chip: 5050 3030×4 7070 Size: 50×50 Order Code: 3295	Material: PC Angle: 100×160 Chip: 5050 3030×4 7070 Size: 50×50 Order Code: 2581

Advantage

IP65 IK08 Suitable for outdoor installation, with maximum impact resistance
DALI-2 Dimmable version available
RAL finish on request
