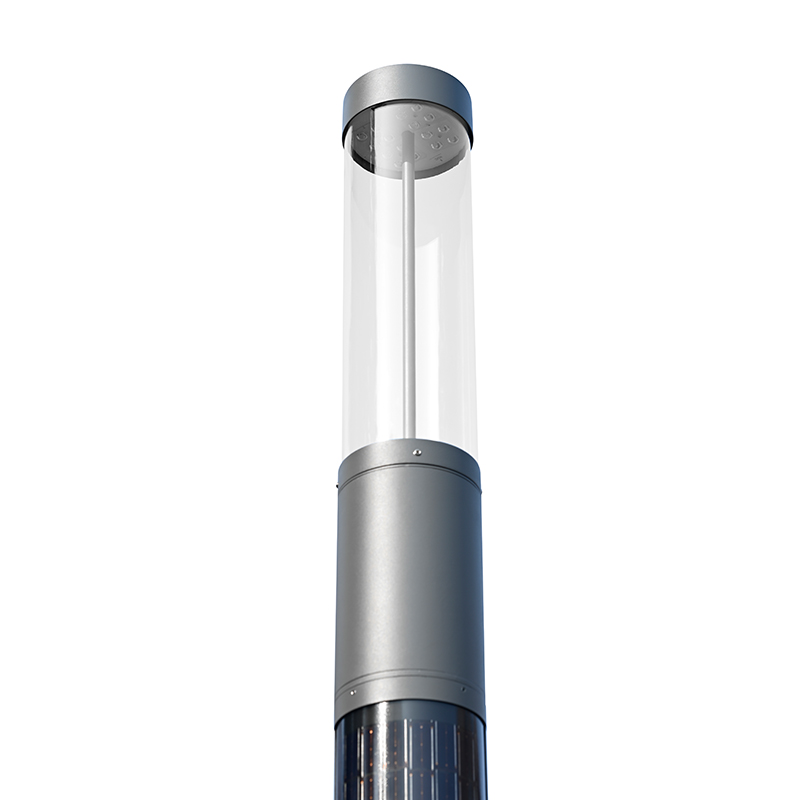

YMLED-6811B Off-Grid Vertical Solar Mast Light

The YMLED-6811B is a solar-powered LED street light specifically designed for outdoor lighting.  It features a robust and durable die-cast aluminum (6063-T5) body. Equipped with high-quality LED chips such as Philips 5050, CREE XTE, CREE XPG, or Ledstar 5050, it offers a selectable CRI of 70 or 80 and a color temperature range of 2200K to 6500K, meeting diverse lighting needs.

The luminaire supports RAL color customization and features an anti-UV polyester powder coating, with optional corrosion resistance treatment exceeding 1000 hours of salt spray testing. The power supply is compatible with AC 100-277Vac, 50/60Hz, and has a lifespan exceeding 50,000 hours at 25°C. It boasts an IP65 dustproof and waterproof rating and IK08 impact resistance, operating within a temperature range of -30°C to +50°C. Optional features include 10kV overvoltage protection, DALI/0-10V/PWM/4Di dimming interfaces, and 5-7 pin NEMA/Zhaga connectors and sensor integration. With a net weight of 29.5/26.5 kg, it is a reliable choice for solar street lighting.

CRI Colour Rendering Index: 80

LED Chips: Philips 3535

CCT: 2200K-6500K

RAL finish on request; anti-UV polyester powder coating surface, salt spray resistance over 1,000 hours

Body Material: Die-cast aluminium,6063-T5

Useful life >  50,000h (Ta= 25°C)

Waterproof Protection rating: IP66

Overvoltage protection: 10kV

Operating temperature: -30°C to +50°C.

Net weight: 37.5/34(kgs)


Brief Description:

 ● Die-cast aluminium housing with independently sealed LED module design

 ● High-transmittance optical lens with multiple light distribution options and secondary optical technology

 ● Optical-grade imported PMMA cover


MPPT charging boost constant-current controller:

● MPPT tracking efficiency ::>: 99.9%, overall system power generation efficiency up to 98%

● Charging conversion efficiency up to 98.2%, constant-current LED driving efficiency up to 97.7%


12V 25AH Lithium Iron Phosphate (LiFePO) battery:

● High energy density, storing more energy at the same weight or volume

● Charge/discharge efficiency ::>: 95% with extremely low energy loss

● Capacity retention > 80% after 2,000 cycles, ensuring over 5 years of high-performance operation

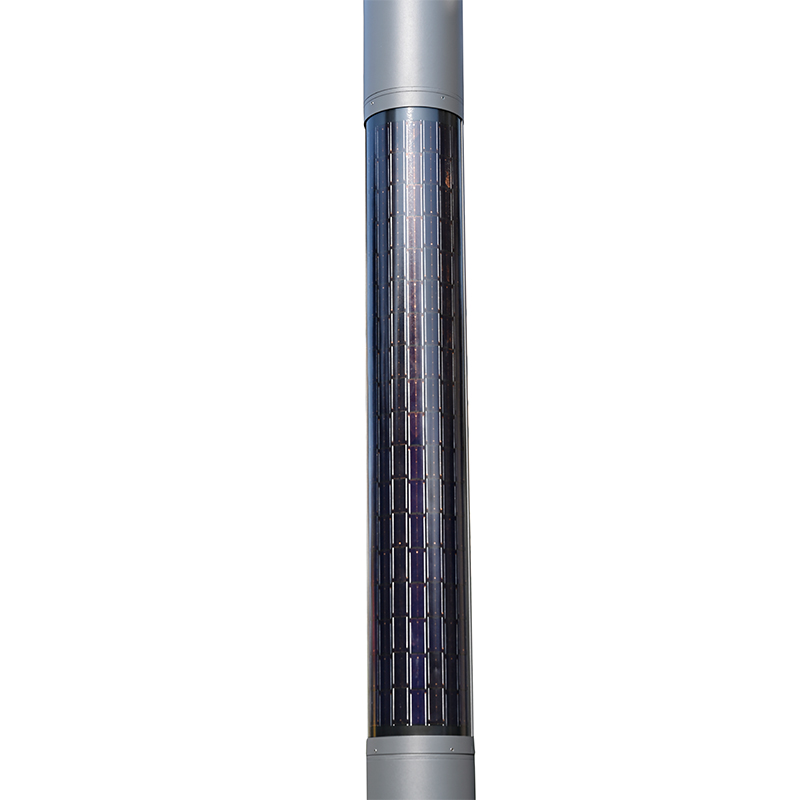

100W cylindrical monocrystalline solar photovoltaic module:

High power output with cell efficiency > 24.9%

● High-quality monocrystalline PV module, covered with 3mm tempered glass

● Optimised cell matching to ensure electrical uniformity, high output power and reliab巾ty

● 10-year product warranty, 90% power output guarantee, and 25-year minimum power output guarantee at 80%

Product Code Rated Power Solar panel power Battery parameters LED Qty Luminous Flux G.W/N.W Packing Size
YMLED-6811B 20W 100W 25AH 16 3100 29.5/26.5(kgs) 4200x175x175mm
Material: PC
Angle: TYPE2
Chip: 5050 3030×4 7070
Size: 50×50
Order Code: 3292
Material: PC
Angle: TYPE3
Chip: 5050 3030×4 7070
Size: 50×50
Order Code: 3293
Material: PC
Angle: TYPE4
Chip: 5050 3030×4 7070
Size: 50×50
Order Code: 3294
Material: PC
Angle: TYPE5
Chip: 5050 3030×4 7070
Size: 50×50
Order Code: 3295
Material: PC
Angle: 100×160
Chip: 5050 3030×4 7070
Size: 50×50
Order Code: 2581
  • IP66 Suitable for outdoor installation, with maximum impact resistance
  • DALI-2  Dimmable version available
  • RAL finish on request
