YMLED-6408L High Brightness Die-casting Aluminum With Tempered Glass Cover LED Street Lights

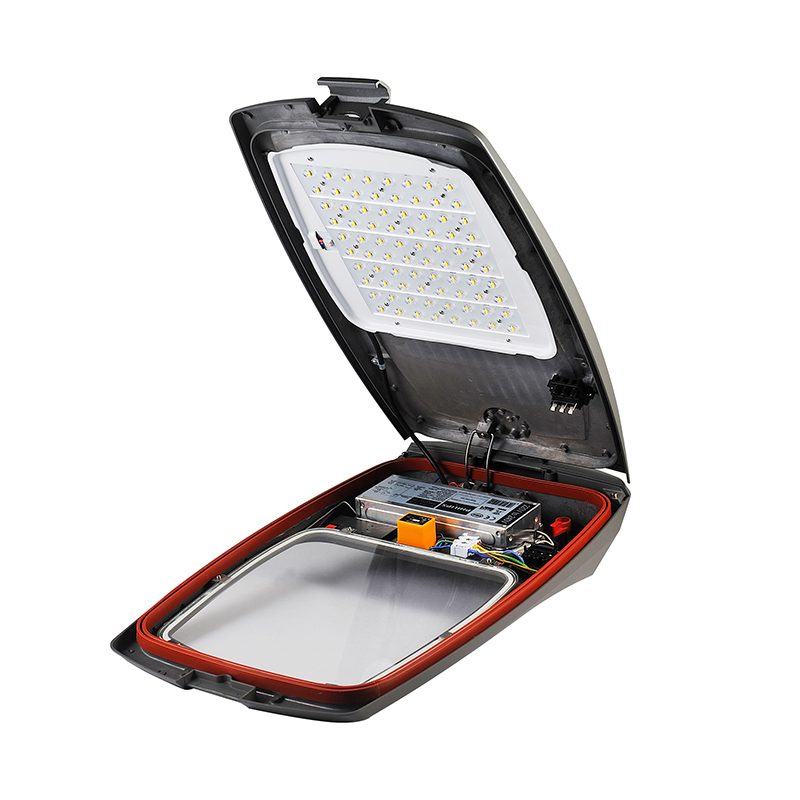

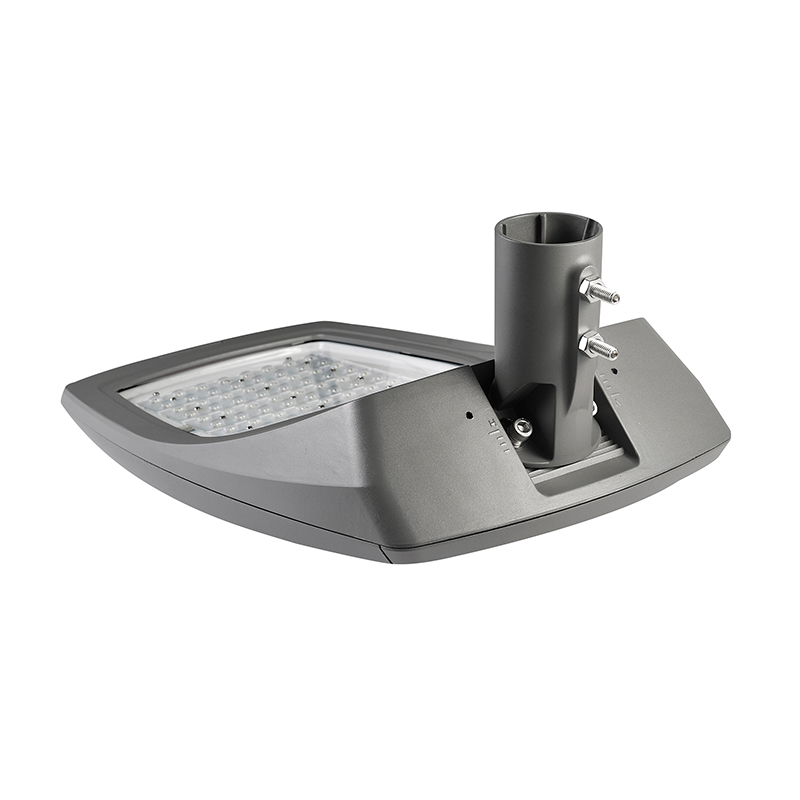

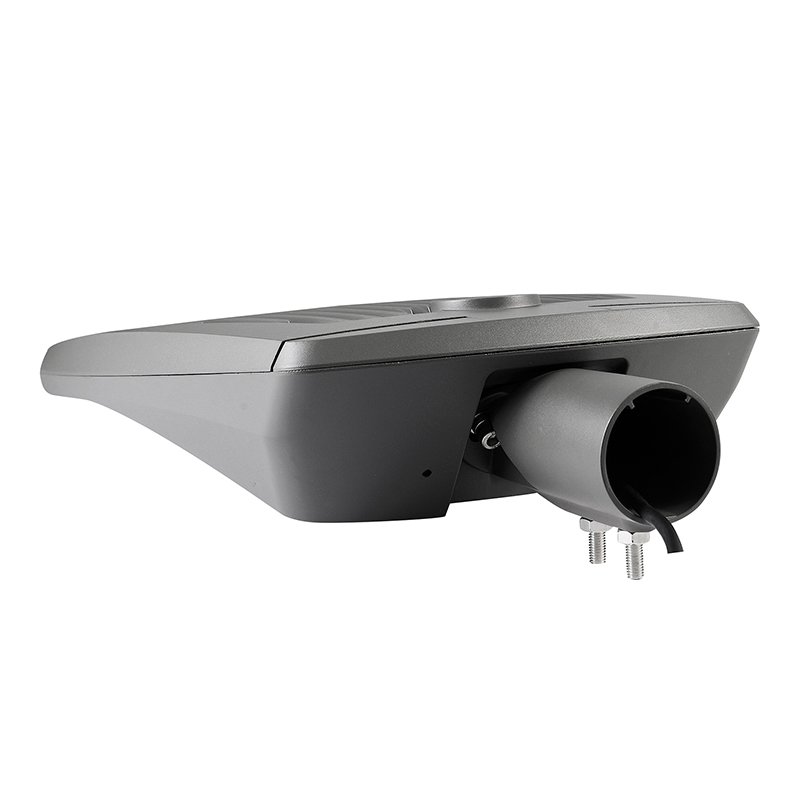

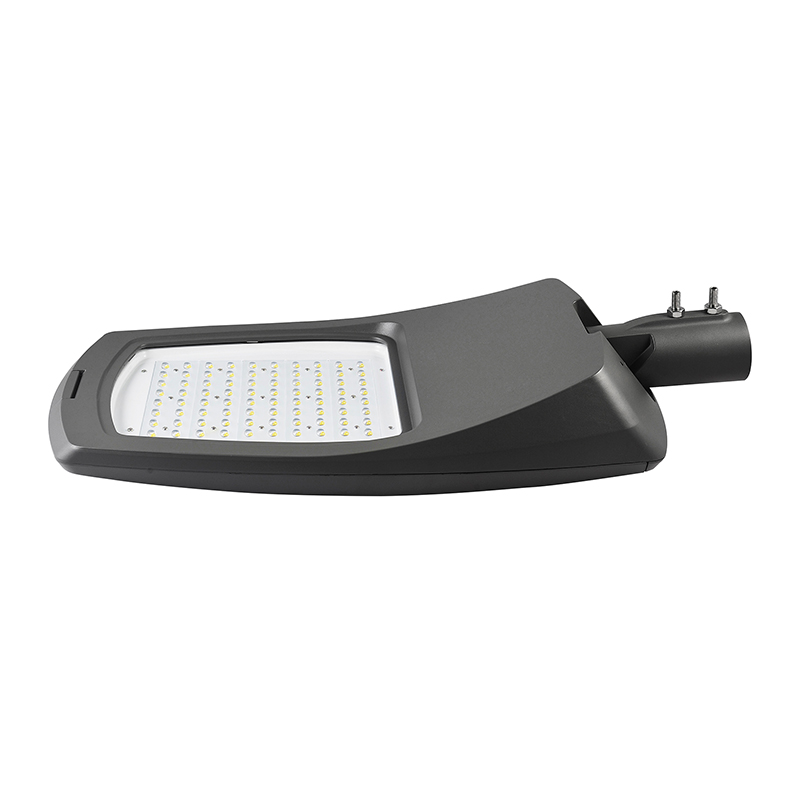

The YMLED-6408L high-brightness die-cast aluminum LED street light features an integrated, compact design: the lamp body has a dark gray die-cast aluminum housing with clean, sharp lines, and a tempered glass lens covering the front, clearly revealing the matrix-arranged LED point light sources inside. The black integrated mounting bracket seamlessly connects to the lamp body, resulting in a clean and streamlined overall design that showcases the perfect combination of modern industrial aesthetics and efficient heat dissipation structure.
This luminaire strictly adheres to road lighting standards. The housing is made of 6063-T5 die-cast aluminum with an anti-UV powder coating surface treatment, and custom RAL colors and enhanced salt spray protection are available. IP65 dustproof and waterproof rating and IK08 impact resistance ensure its suitability for various harsh outdoor environments. It is equipped with multi-brand high-efficiency LED modules (Philips, CREE, etc. chips are optional), achieving high-brightness uniform illumination through precise light distribution design. It supports 2200K-6500K color temperature adjustment and 70/80 high color rendering index options. Wide voltage input (AC 100-277V) and intelligent control compatibility (DALI/0-10V/PWM/4Di) meet the requirements of different power grids worldwide, and optional overvoltage protection, sensors, and standardized interfaces (NEMA/Zhaga) are available for intelligent road lighting management.

CRI Colour Rendering Index: 70,80(Optional)
LED Chips: Philips5050, CREE XTE, CREE XPG, Ledstar 5050 (selectable)
CCT: 2200K-6500K
RAL finish on request; anti-UV polyester powder coating surface, salt spray resistance over 1,000 hours (optional)
Body Material: Die-cast aluminium,6063-T5
Power supply: AC 100-277 Vac; 50/60 Hz.
Useful life >  50,000h (Ta= 25°C)
Waterproof Protection & Impact Protection Rating: IP65/IK08
Overvoltage protection: 10kV (optional)
Operating temperature: -30°C to +50°C.
Net weight: 9/10(kgs)
Available options: DALI, 0-10V, PWM,  4Di.
Optional: 5- to 7-pin NEMA connector, Zhaga, and sensors

Product Code Rated Power Nominal initial FLUX Rated Power Nominal initial FLUX LED Qty G.W/N.W Packing Size Loading Qty
(led current 530mA) (led current 700mA)
Galaxy max(48) 80W 10304lm 104W 12544lm 48 9/10(kgs) 770*400*160MM 588PCS/20'GP
1392PCS/40'HQ
Galaxy max(64) 105W 13440lm 140W 16800lm 64 9/10(kgs) 770*400*160MM
Galaxy max(80) 135W 17024lm 180W 21056lm 80 9/10(kgs) 770*400*160MM
Material: PC
Angle: TYPE2
Chip: 5050 3030×4 7070
Size: 50×50
Order Code: 3292
Material: PC
Angle: TYPE3
Chip: 5050 3030×4 7070
Size: 50×50
Order Code: 3293
Material: PC
Angle: TYPE4
Chip: 5050 3030×4 7070
Size: 50×50
Order Code: 3294
Material: PC
Angle: TYPE5
Chip: 5050 3030×4 7070
Size: 50×50
Order Code: 3295
Material: PC
Angle: 100×160
Chip: 5050 3030×4 7070
Size: 50×50
Order Code: 2581
  • IP65 IK08 Suitable for outdoor installation, with maximum impact resistance
  • DALI-2  Dimmable version available
  • RAL finish on request
