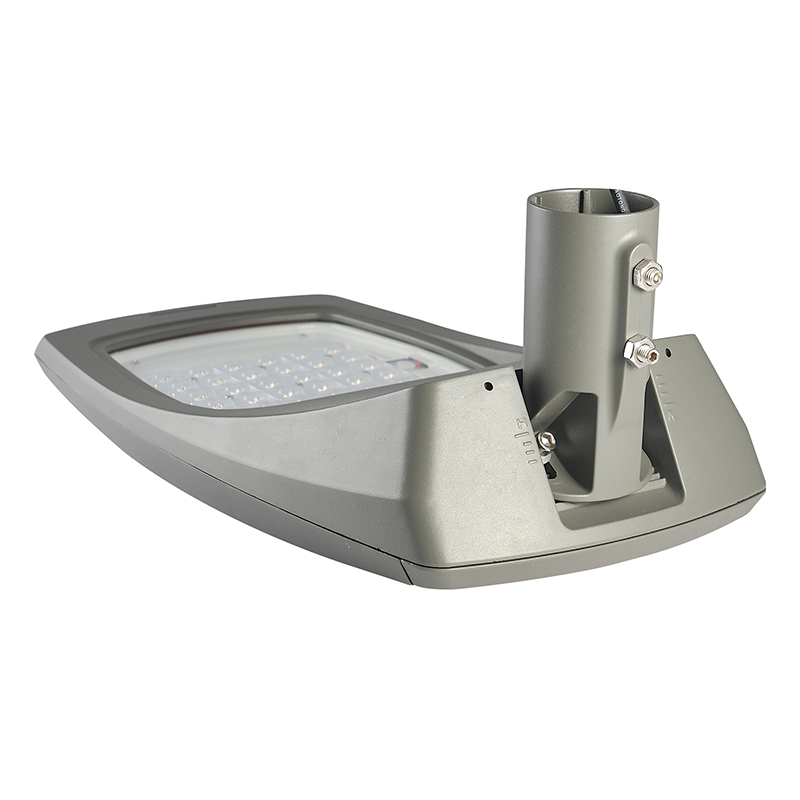

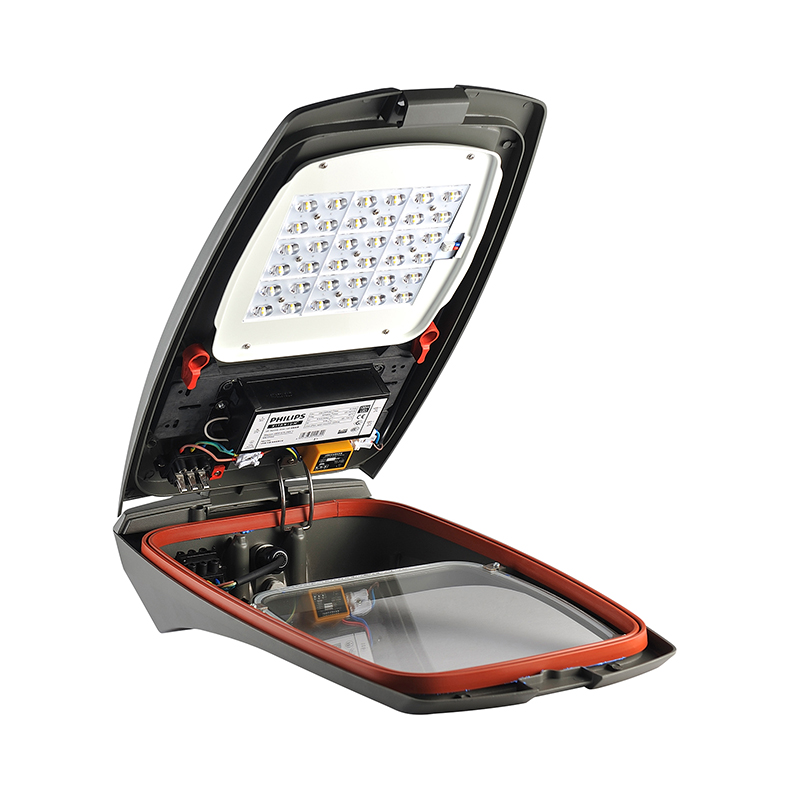

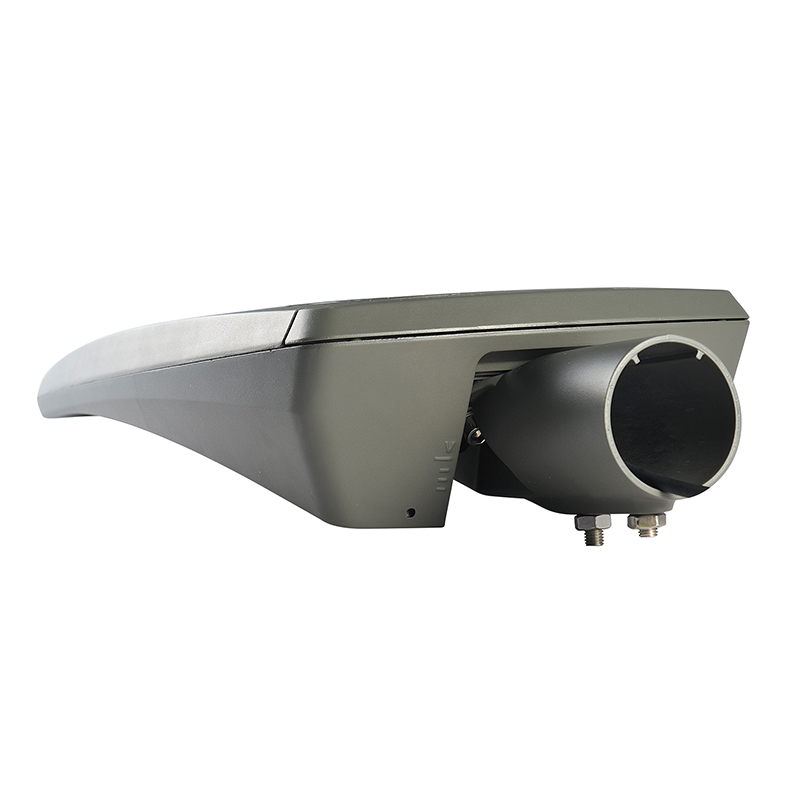

YMLED-6408M Popular Aluminum Waterproof IP66 Outdoor LED Road Lamp

The YMLED-6408M is a cost-effective, waterproof LED street light designed for urban side roads, rural roads, and park pathways.  With its streamlined modern design and high IP66 protection rating, it's a popular choice for outdoor road lighting.
The lamp body is made of 6063-T5 die-cast aluminum, coated with a UV-resistant polyester powder coating, and supports RAL color customization.  Optional features include over 1000 hours of salt spray resistance treatment.  With an IP66/IK08 protection rating, it can operate stably for extended periods in complex outdoor environments, including heavy rain, dust storms, and physical impacts.
The light source supports high-quality LEDs such as Philips 5050 and CREE XTE/XPG, with adjustable color temperature from 2200K to 6500K and a selectable color rendering index of 70/80. This meets the clarity requirements of road lighting while also creating a soft nighttime ambiance. The wide voltage design is compatible with power grids in most regions worldwide, and the lifespan exceeds 50,000 hours at 25℃.  Optional 10kV overvoltage protection is also available, significantly reducing maintenance costs.
The luminaire offers dimming protocols such as DALI, 0-10V, and PWM, as well as expansion options including NEMA connectors, Zhaga interfaces, and sensors, meeting the needs of smart lighting upgrades. It is a cost-effective outdoor road lighting solution.

CRI Colour Rendering Index: 70,80(Optional)
LED Chips: Philips5050, CREE XTE, CREE XPG, Ledstar 5050 (selectable)
CCT: 2200K-6500K
RAL finish on request; anti-UV polyester powder coating surface, salt spray resistance over 1,000 hours (optional)
Body Material: Die-cast aluminium,6063-T5
Power supply: AC 100-277 Vac; 50/60 Hz.
Useful life >  50,000h (Ta= 25°C)
Waterproof Protection & Impact Protection Rating: IP65/IK08
Overvoltage protection: 10kV (optional)
Operating temperature: -30°C to +50°C.
Net weight: 6/7(kgs)
Available options: DALI, 0-10V, PWM,  4Di.
Optional: 5- to 7-pin NEMA connector, Zhaga, and sensors

Product Code Rated Power Nominal initial FLUX Rated Power Nominal initial FLUX LED Qty G.W/N.W Packing Size Loading Qty
(led current 530mA) (led current 700mA)
Galaxy mini(16) 26W 3360lm 35W 4256lm 16 6/7(kgs) 655*330*160MM 784PCS/20'GP
2016PCS/40'HQ
Galaxy mini(20) 33W 4144lm 42W 5040lm 20 6/7(kgs) 655*330*160MM
Galaxy mini(24) 40W 4600lm 52W 6272lm 24 6/7(kgs) 655*330*160MM
Galaxy mini(28) 46W 5152lm 60W 7280lm 28 6/7(kgs) 655*330*160MM
Galaxy mini(32) 52W 6720lm 67W 8064lm 32 6/7(kgs) 655*330*160MM
Galaxy mini(36) 60W 7728lm 75W 9072lm 36 6/7(kgs) 655*330*160MM
Galaxy mini(40) 66W 8512lm 86W 10304lm 40 6/7(kgs) 655*330*160MM
Galaxy mini(44) 71W 9296lm 95W 11424lm 44 6/7(kgs) 655*330*160MM
Galaxy mini(48) 80W 10080lm 104W 12544lm 48 6/7(kgs) 655*330*160MM
Material: PC
Angle: TYPE2
Chip: 5050 3030×4 7070
Size: 50×50
Order Code: 3292
Material: PC
Angle: TYPE3
Chip: 5050 3030×4 7070
Size: 50×50
Order Code: 3293
Material: PC
Angle: TYPE4
Chip: 5050 3030×4 7070
Size: 50×50
Order Code: 3294
Material: PC
Angle: TYPE5
Chip: 5050 3030×4 7070
Size: 50×50
Order Code: 3295
Material: PC
Angle: 100×160
Chip: 5050 3030×4 7070
Size: 50×50
Order Code: 2581
  • IP65 IK08 Suitable for outdoor installation, with maximum impact resistance
  • DALI-2  Dimmable version available
  • RAL finish on request
