YMLED-6408S LED Post Top Street Light Factory for Community & Road Lighting IP66 Rated

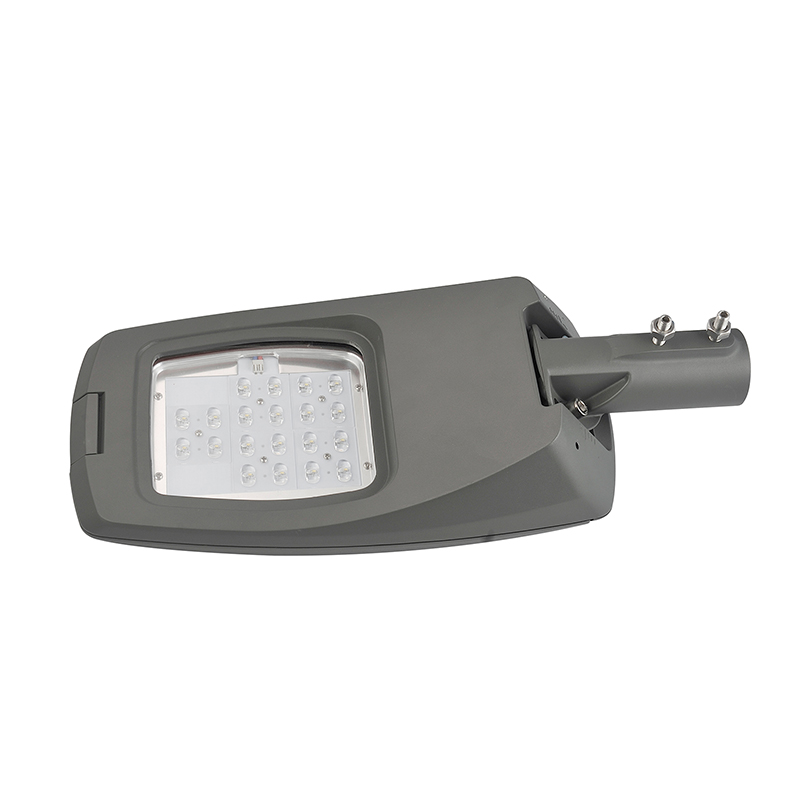

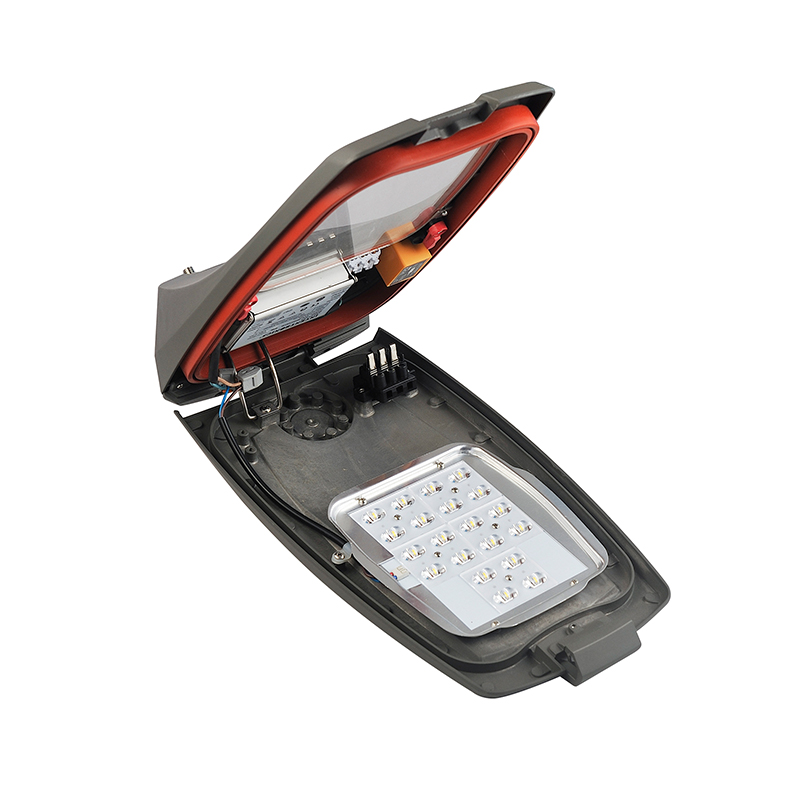

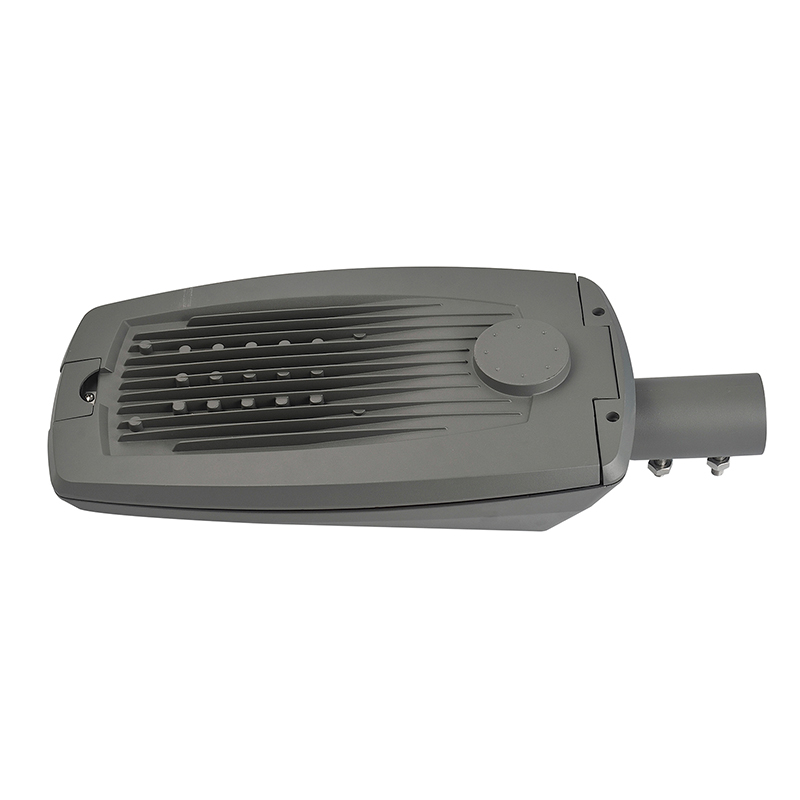

The YMLED-6408S LED post-top street light features a highly integrated design: the lamp body is made of a dark gray, high-strength die-cast aluminum housing with clean and smooth lines, presenting a modern industrial aesthetic. Its main body has a flat, square structure with a cleverly integrated optical lens module in the central recessed area, and a cylindrical interface extending from the right side for quick installation and wiring. The overall design is compact and lightweight, suitable for community road lighting while maintaining a discreet and harmonious visual appearance.
This luminaire strictly adheres to rigorous outdoor environmental standards. The entire body is made of 6063-T5 die-cast aluminum, with a surface treated with UV-resistant polyester powder coating, and optional RAL custom colors and enhanced salt spray protection (>1000 hours). The IP66 protection rating (higher than the conventional IP65) and IK08 impact resistance design ensure stable operation in extreme weather conditions such as heavy rain and strong winds. It is equipped with high-efficiency LED modules from multiple brands (optional Philips, CREE, etc.), combined with professional optical lenses, to achieve wide and uniform road lighting. It supports 2200K-6500K color temperature adjustment and 70/80 high color rendering index options. Wide voltage input (AC 100-277V) and intelligent control compatibility (DALI/0-10V/PWM/4Di) make it suitable for different power grids worldwide and allow for seamless integration into smart city lighting management systems through optional NEMA/Zhaga standardized interfaces and sensor modules.

CRI Colour Rendering Index: 70,80(Optional)
LED Chips: Philips5050, CREE XTE, CREE XPG, Ledstar 5050 (selectable)
CCT: 2200K-6500K
RAL finish on request; anti-UV polyester powder coating surface, salt spray resistance over 1,000 hours (optional)
Body Material: Die-cast aluminium,6063-T5
Power supply: AC 100-277 Vac; 50/60 Hz.
Useful life >  50,000h (Ta= 25°C)
Waterproof Protection & Impact Protection Rating: IP65/IK08
Overvoltage protection: 10kV (optional)
Operating temperature: -30°C to +50°C.
Net weight: 4/5(kgs)
Available options: DALI, 0-10V, PWM,  4Di.
Optional: 5- to 7-pin NEMA connector, Zhaga, and sensors

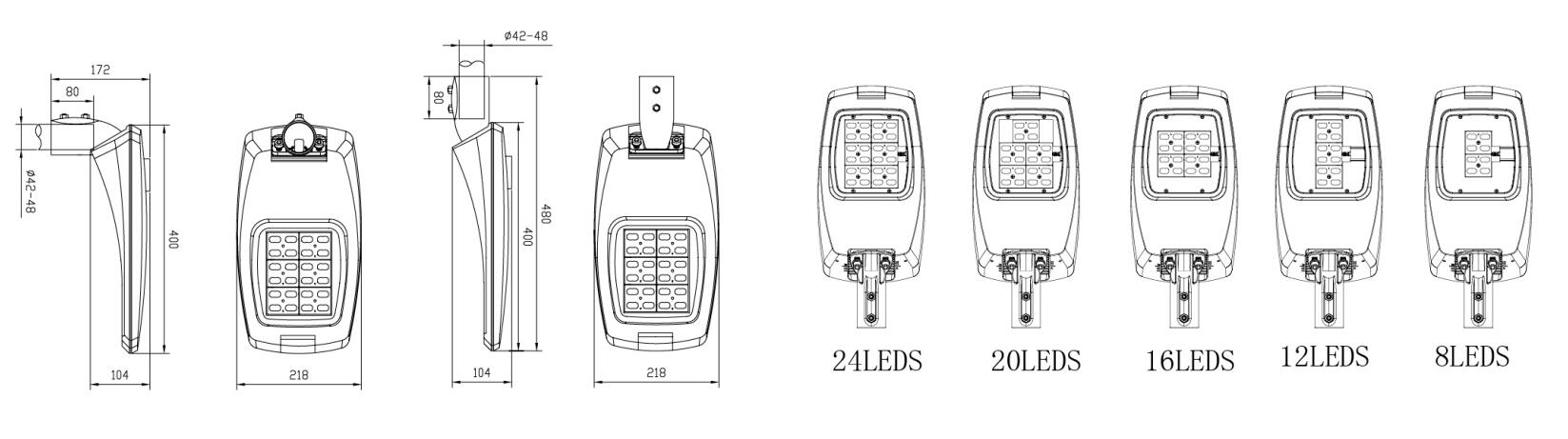

Product Code Rated Power Nominal initial FLUX Rated Power Nominal initial FLUX LED Qty G.W/N.W Packing Size Loading Qty
(led current 530mA) (led current 700mA)
Galaxy micro(8) 13W 1674lm 18W 2170lm 8 4/5(kgs) 525*240*140MM 1472PCS/20'GP
3724PCS/40'HQ
Galaxy micro(12) 20W 2576lm 26W 3136lm 12 4/5(kgs) 525*240*140MM
Galaxy micro(16) 26W 3360lm 35W 4256lm 16 4/5(kgs) 525*240*140MM
Galaxy micro(20) 33W 4144lm 42W 5040lm 20 4/5(kgs) 525*240*140MM
Galaxy micro(24) 40W 5152lm 52W 6272lm 24 4/5(kgs) 525*240*140MM
Material: PC
Angle: TYPE2
Chip: 5050 3030×4 7070
Size: 50×50
Order Code: 3292
Material: PC
Angle: TYPE3
Chip: 5050 3030×4 7070
Size: 50×50
Order Code: 3293
Material: PC
Angle: TYPE4
Chip: 5050 3030×4 7070
Size: 50×50
Order Code: 3294
Material: PC
Angle: TYPE5
Chip: 5050 3030×4 7070
Size: 50×50
Order Code: 3295
Material: PC
Angle: 100×160
Chip: 5050 3030×4 7070
Size: 50×50
Order Code: 2581
  • IP65 IK08 Suitable for outdoor installation, with maximum impact resistance
  • DALI-2  Dimmable version available
  • RAL finish on request
