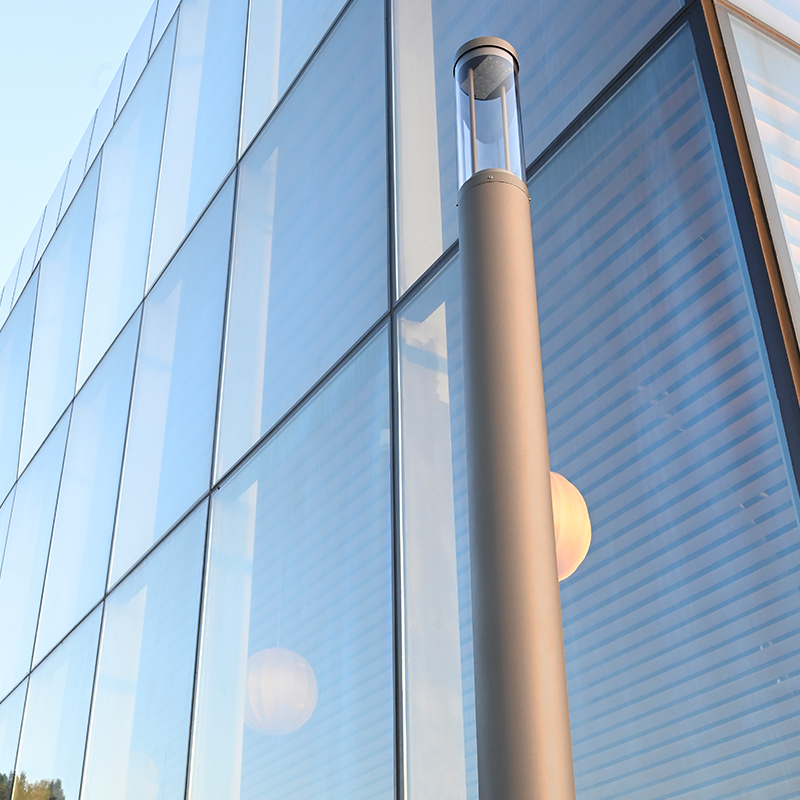

The YMLED-6308 is a professional fixture specifically designed for outdoor pathways. The structure utilizes a combination of a die-cast aluminum head and a 6063-T5 drawn aluminum pole, providing extremely high structural rigidity while ensuring the lamp body remains lightweight. The entire unit is both light and sturdy enough to handle long-term outdoor use, ensuring the fixture does not rust or fade over time.
In terms of lighting effects, we have utilized an optical-grade PMMA lampshade paired with secondary light distribution technology. This allows light to be projected more precisely onto the road surface, reducing light pollution while making pathway illumination more uniform and natural.
The fixture adopts a fully sealed structure with a protection rating of IP66 and features IK08 impact resistance. For environments with unstable power supply, we also offer optional 10kV surge protection to ensure the safety of internal electrical components during thunderstorm seasons. This reduces long-term maintenance costs, making it a mature product perfectly suited for pathway lighting in residential areas, parks, and similar locations.
CRI Colour Rendering Index: 70,80(Optional)
LED Chips: Osram 2835
CCT: 2200K-6500K
RAL finish on request; anti-UV polyester powder coating surface, salt spray resistance over 1,000 hours (optional)
Body Material: Die-cast aluminium,6063-T5
Power supply: AC 100-277 Vac; 50/60 Hz.
Useful life > 50,000h (Ta= 25°C)
Waterproof Protection & Impact Protection Rating: IP65/IK08
Overvoltage protection: 10kV (optional)
Operating temperature: -30°C to +50°C.
Net weight: 28/24.5(kgs)
Available options: DALI, 0-10V, PWM, 4Di.
Optional: 5- to 7-pin NEMA connector, Zhaga, and sensors
| Product Code | Rated Power | LED Qty | Luminous Flux | G.W./N.W | Packing Size |
| YMLED-6308(12) | 20W | 12 | 2320 | 28/24.5(kgs) | 630x265x265mm 1PCS/CTN 3430x550x300mm 2PCS/CTN |
| YMLED-6308(16) | 30W | 16 | 3480 | ||
| YMLED-6308(20) | 40W | 20 | 4640 | ||
| YMLED-6308(24) | 55W | 24 | 6380 |
![]() |
![]() |
![]() |
| Material: PC
Angle: TYPE2
Chip: 5050 3030×4 7070
Size: 50×50
Order Code: 3292
|
Material: PC
Angle: TYPE3
Chip: 5050 3030×4 7070
Size: 50×50
Order Code: 3293
|
Material: PC
Angle: TYPE4
Chip: 5050 3030×4 7070
Size: 50×50
Order Code: 3294
|
![]() |
![]() |
|
| Material: PC
Angle: TYPE5
Chip: 5050 3030×4 7070
Size: 50×50
Order Code: 3295
|
Material: PC
Angle: 100×160
Chip: 5050 3030×4 7070
Size: 50×50
Order Code: 2581
|
RAL and Height finish on request

Samples: Typically 7 working days.
Bulk Orders: Approximately 14-21 working days after receiving the deposit and confirming all specifications.
We accept payments in USD via T/T. The standard terms are:
30% deposit before production, 70% balance before shipment.
For orders below $1000 USD, full payment (100%) is required via T/T.
Our quotations are typically based on EXW or FOB trade terms.
Yes, we offer professional OEM/ODM customization services to meet specific requirements in product design, performance, and packaging.
With extensive experience in non-standard customized products, our engineering team is able to provide technical solutions and initial feedback within 12 hours.
Standard packaging includes brown outer cartons and brown inner boxes.
For orders of any quantity, we offer customization services, including: Laser-engraved logos on the lamp body. Custom-designed color boxes and cartons with your logo.
Considering that most of our customers are involved in engineering projects, we don't have an MOQ.
Our products comply with international standards, with CE and RoHS certifications for all categories. Some of the garden lights and street lamps also have ETL and ENEC certifications.
