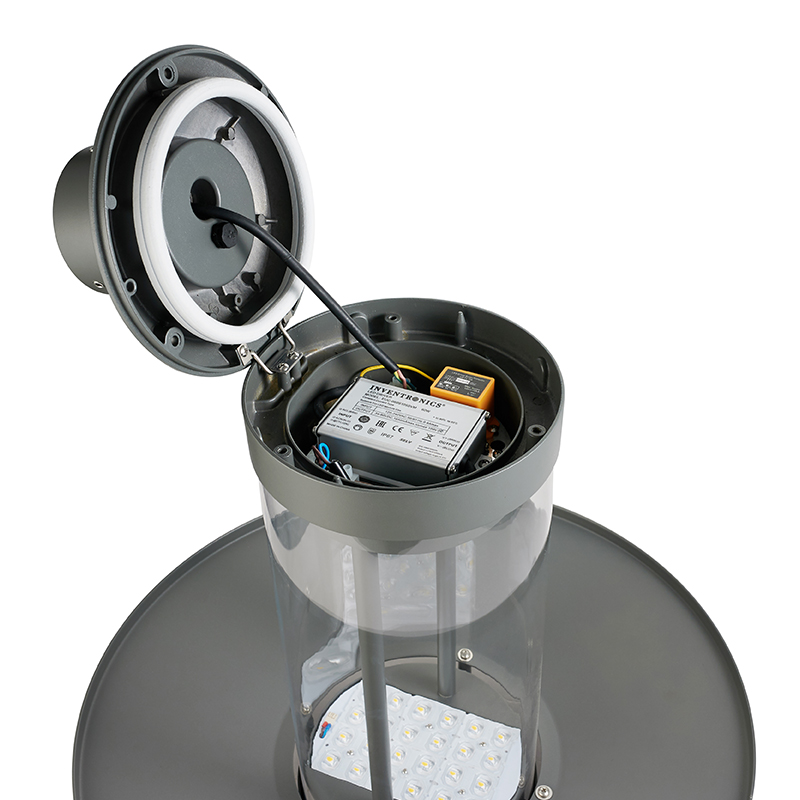

The YMLED-6107 is a product in our garden light series that balances durability with intelligence. The fixture architecture consists of a precision die-cast aluminum housing and a spun aluminum cover, using high-standard 6063-T5 aluminum alloy. Combined with an IP66-rated fully sealed design, it ensures stability and waterproof performance for long-term outdoor use.
In terms of lighting effects, we have selected an optical-grade PMMA lampshade and applied dual light distribution and diffusion technology. This makes the emitted light more uniform and glare-free, allowing it to integrate seamlessly into the landscape environment.
The fixture is pre-configured with a standard 5-7 pin NEMA interface or Zhaga interface, supporting the direct connection of smart control modules or various sensors without modifying the original wiring. This facilitates subsequent dimming or system management.
CRI Colour Rendering Index: 70,80(Optional)
LED Chips: Philips5050、CREE XTE、CREE XPG、Ledstar 5050
CCT: 2200K-6500K
Body Material: Die-cast aluminium,6063-T5
RAL finish on request; anti-UV polyester powder coating surface, salt spray resistance over 1,000 hours (optional)
Power supply: AC 100-277 Vac; 50/60 Hz.
Useful life > 50,000h (Ta= 25°C)
Waterproof Protection & Impact Protection Rating: IP65/IK08
Overvoltage protection: 10kV (optional)
Operating temperature: -30°C to +50°C.
Net weight: 7.5/6.5kgs
Available options: DALI, 0-10V, PWM, 4Di.
Optional: 5- to 7-pin NEMA connector, Zhaga, and sensors
| Product Code | Rated Power | LED Qty | Luminous Flux | G.W./N.W | Packing Size | Loading Qty |
| YMLED-6107 (12) | 20W | 12 | 2320 | 7.5/6.5(kgs) | 580x265x265mm 1PCS/CTN 590x590x100mm 3PCS/CTN |
480PCS/20'GP 1170PCS/40'HQ |
| YMLED-6107 (16) | 30W | 16 | 3480 | 7.5/6.5(kgs) | ||
| YMLED-6107 (20) | 40W | 20 | 4640 | 7.5/6.5(kgs) | ||
| YMLED-6107 (24) | 55W | 24 | 6380 | 7.5/6.5(kgs) |
![]() |
![]() |
![]() |
| Material: PC
Angle: TYPE2
Chip: 5050 3030×4 7070
Size: 50×50
Order Code: 3292
|
Material: PC
Angle: TYPE3
Chip: 5050 3030×4 7070
Size: 50×50
Order Code: 3293
|
Material: PC
Angle: TYPE4
Chip: 5050 3030×4 7070
Size: 50×50
Order Code: 3294
|
![]() |
![]() |
|
| Material: PC
Angle: TYPE5
Chip: 5050 3030×4 7070
Size: 50×50
Order Code: 3295
|
Material: PC
Angle: 100×160
Chip: 5050 3030×4 7070
Size: 50×50
Order Code: 2581
|
RAL and Height finish on request

Samples: Typically 7 working days.
Bulk Orders: Approximately 14-21 working days after receiving the deposit and confirming all specifications.
We accept payments in USD via T/T. The standard terms are:
30% deposit before production, 70% balance before shipment.
For orders below $1000 USD, full payment (100%) is required via T/T.
Our quotations are typically based on EXW or FOB trade terms.
Yes, we offer professional OEM/ODM customization services to meet specific requirements in product design, performance, and packaging.
With extensive experience in non-standard customized products, our engineering team is able to provide technical solutions and initial feedback within 12 hours.
Standard packaging includes brown outer cartons and brown inner boxes.
For orders of any quantity, we offer customization services, including: Laser-engraved logos on the lamp body. Custom-designed color boxes and cartons with your logo.
Considering that most of our customers are involved in engineering projects, we don't have an MOQ.
Our products comply with international standards, with CE and RoHS certifications for all categories. Some of the garden lights and street lamps also have ETL and ENEC certifications.
