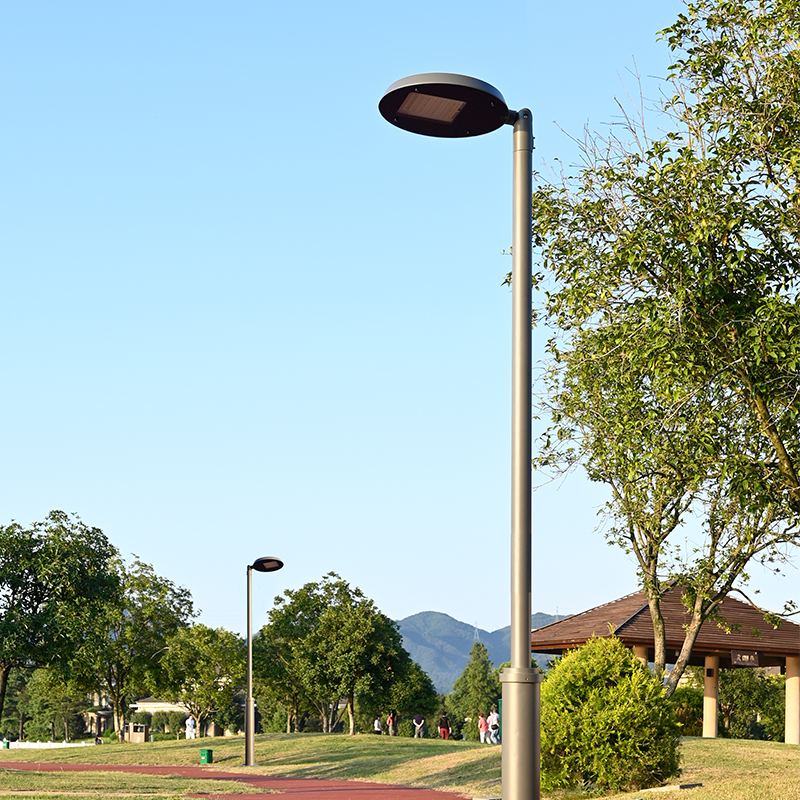

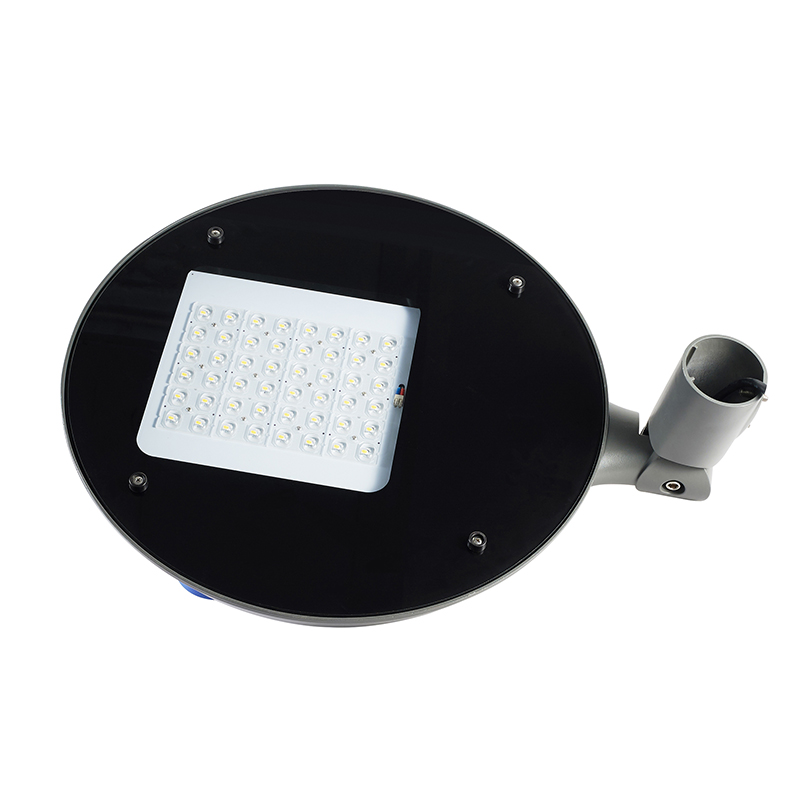

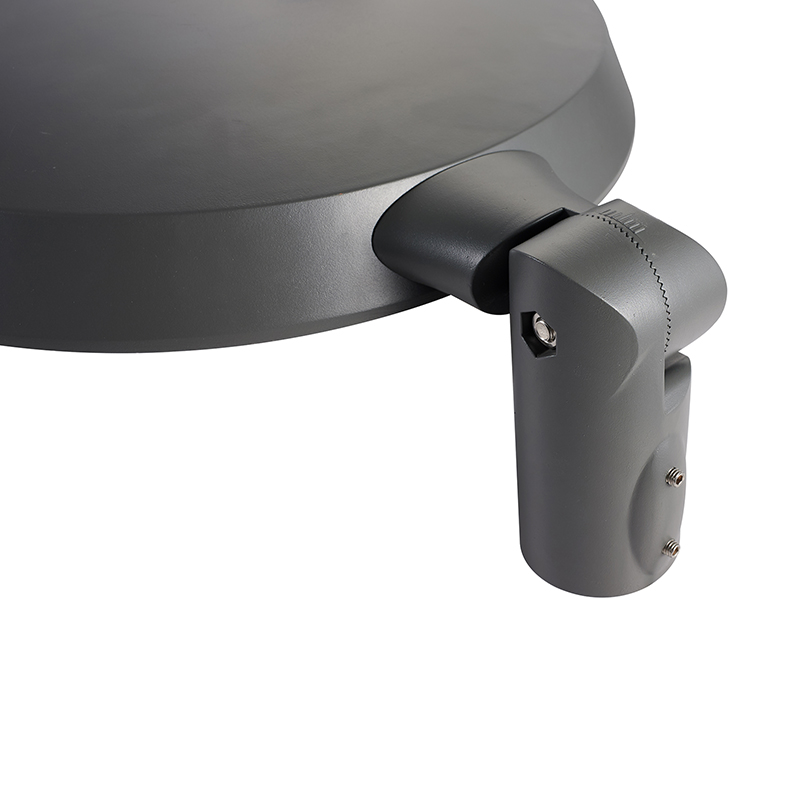

YMLED-6409 Smart Lighting Equipped With NEMA Socket Aluminum LED Street Lights

The YMLED-6409 is an aluminum LED street light specifically designed for smart lighting, equipped with a NEMA interface, combining modern technology and durability. It features high-quality LED chips such as Philips 5050, CREE XTE, CREE XPG, or Ledstar 5050, offering selectable CRI of 70 or 80, and a color temperature range of 2200K to 6500K, meeting the lighting needs of various scenarios.

The lamp body is made of die-cast aluminum (6063-T5), supports RAL color customization, and features an anti-UV polyester powder coating with optional corrosion resistance treatment exceeding 1000 hours of salt spray testing. The power supply is compatible with AC 100-277Vac, 50/60Hz, and has a lifespan of over 50,000 hours at 25°C.

It boasts an IP66 dustproof and waterproof rating and IK10 impact resistance, with an operating temperature range of -30°C to +50°C. Optional features include 10kV overvoltage protection, DALI/0-10V/PWM/4Di dimming interfaces, and 5-7 pin NEMA/Zhaga connectors and sensor integration. With a net weight of 9.5/7.9 kg, it is a reliable choice for smart street lighting.

CRI Colour Rendering Index: 70,80(Optional)
LED Chips: Philips5050, CREE XTE, CREE XPG, Ledstar 5050 (selectable)
CCT: 2200K-6500K
RAL finish on request; anti-UV polyester powder coating surface, salt spray resistance over 1,000 hours (optional)
Body Material: Die-cast aluminium,6063-T5
Power supply: AC 100-277 Vac; 50/60 Hz.
Useful life >  50,000h (Ta= 25°C)
Waterproof Protection & Impact Protection Rating: IP66/IK10
Overvoltage protection: 10kV (optional)
Operating temperature: -30°C to +50°C.
Net weight: 9.5/7.9(kgs)
Available options: DALI, 0-10V, PWM,  4Di.

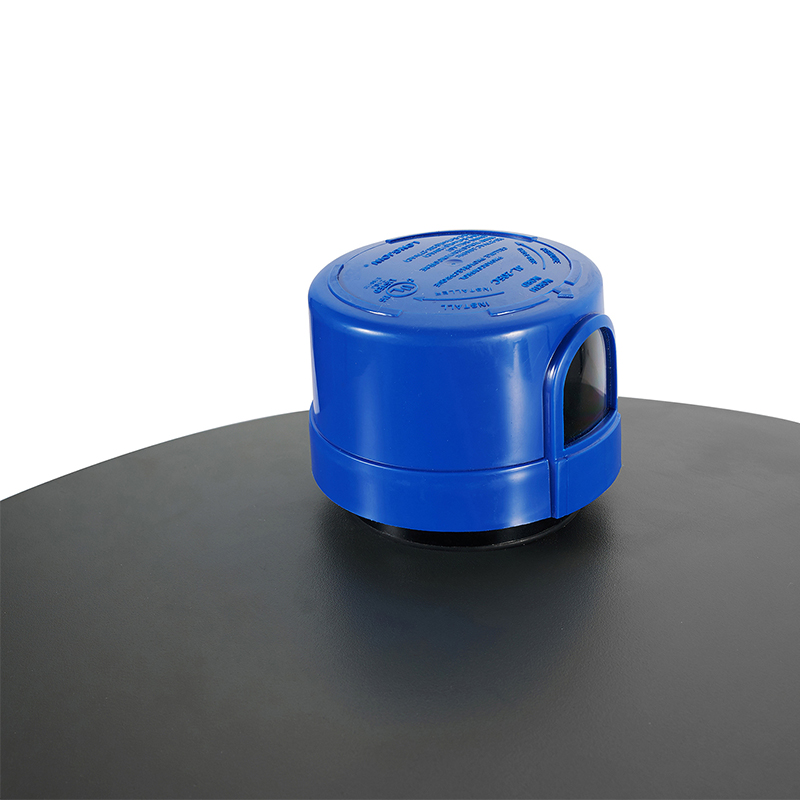

Optional: 5- to 7-pin NEMA connector, Zhaga, and sensors

Product Code Rated Power LED Qty Luminous Flux G.W/N.W Packing Size Loading Qty
YMLED-6409(16) 30W 16 3900 9.5/7.9(kgs) 660x560x130mm 544PCS/20'GP
1360PCS/40'HQ
YMLED-6409(20) 40W 20 5200 9.5/7.9(kgs) 660x560x130mm
YMLED-6409(24) 55W 24 7150 9.5/7.9(kgs) 660x560x130mm
YMLED-6409(28) 60W 28 7800 9.5/7.9(kgs) 660x560x130mm
YMLED-6409(32) 70W 32 9100 9.5/7.9(kgs) 660x560x130mm
YMLED-6409(36) 80W 36 10400 9.5/7.9(kgs) 660x560x130mm
YMLED-6409(40) 90W 40 11700 9.5/7.9(kgs) 660x560x130mm
YMLED-6409(44) 100W 44 13000 9.5/7.9(kgs) 660x560x130mm
YMLED-6409(48) 105W 48 13650 9.5/7.9(kgs) 660x560x130mm
Material: PC
Angle: TYPE2
Chip: 5050 3030×4 7070
Size: 50×50
Order Code: 3292
Material: PC
Angle: TYPE3
Chip: 5050 3030×4 7070
Size: 50×50
Order Code: 3293
Material: PC
Angle: TYPE4
Chip: 5050 3030×4 7070
Size: 50×50
Order Code: 3294
Material: PC
Angle: TYPE5
Chip: 5050 3030×4 7070
Size: 50×50
Order Code: 3295
Material: PC
Angle: 100×160
Chip: 5050 3030×4 7070
Size: 50×50
Order Code: 2581
  • IP66 IK10 Suitable for outdoor installation, with maximum impact resistance
  • DALI-2  Dimmable version available
  • RAL finish on request
