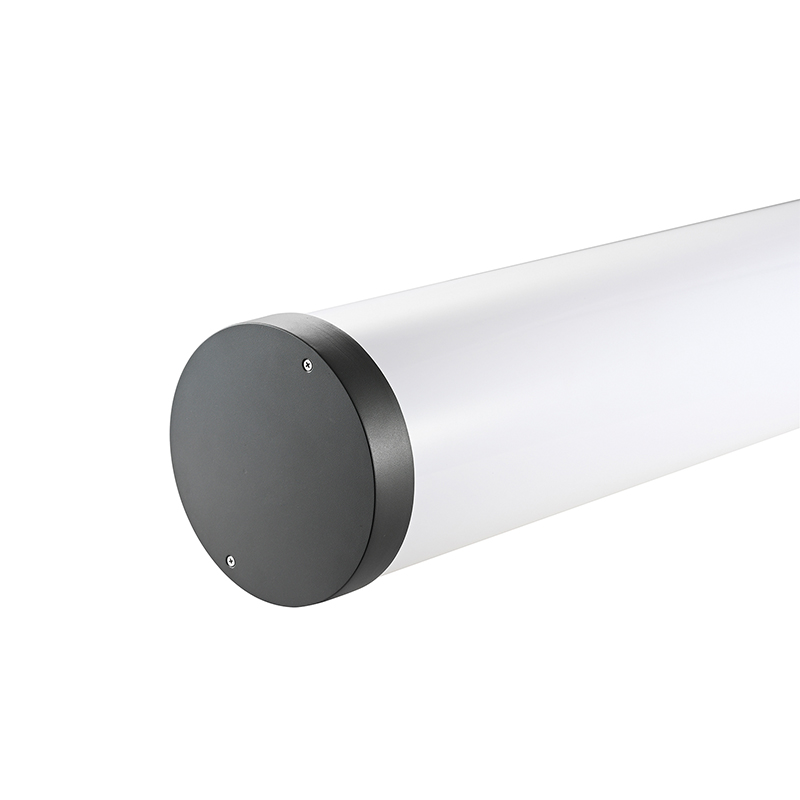

YMLED-6309 High Efficiency IP66 LED Road Lamp Garden Lights

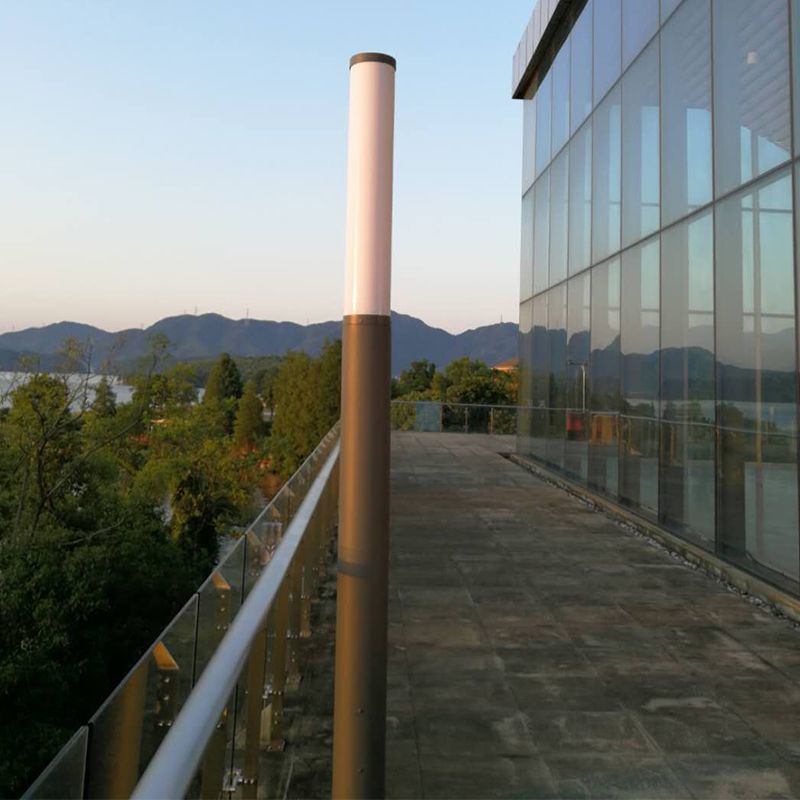

The YMLED-6309 is a high-power LED street and garden light designed for efficient illumination, specifically for urban main roads, park roads, large parks, and other areas requiring high brightness and stability.  With its minimalist columnar design and superior outdoor protection, it provides professional-grade nighttime lighting.
The lamp body is made of 6063-T5 die-cast aluminum, coated with a UV-resistant polyester powder coating, and supports RAL color customization.  Optional features include over 1000 hours of salt spray corrosion resistance treatment.  With an IP66/IK08 protection rating, it can operate stably for extended periods in extreme outdoor environments such as heavy rain, dust storms, and physical impacts.
The light source supports various high-quality LED chips such as Philips 5050 and CREE XTE/XPG, with adjustable color temperature from 2200K to 6500K and a selectable color rendering index of 70/80.  Combined with an efficient optical design, it achieves large-area uniform illumination. The wide voltage design is compatible with power grids in most regions worldwide, and it boasts a lifespan of over 50,000 hours at 25℃.  Optional 10kV overvoltage protection is also available, significantly reducing maintenance costs.
The luminaire offers dimming protocols such as DALI, 0-10V, and PWM, as well as expansion options including NEMA connectors, Zhaga interfaces, and sensors, meeting the needs of smart lighting upgrades. It is an ideal lighting solution for demanding outdoor environments.

CRI Colour Rendering Index: 70,80(Optional)
LED Chips: Osram 2835
CCT: 2200K-6500K
RAL finish on request; anti-UV polyester powder coating surface, salt spray resistance over 1,000 hours (optional)
Body Material: Die-cast aluminium,6063-T5
Power supply: AC 100-277 Vac; 50/60 Hz.
Useful life >  50,000h (Ta= 25°C)
Waterproof Protection & Impact Protection Rating: IP65/IK08
Overvoltage protection: 10kV (optional)
Operating temperature:  -30°C to +50°C.
Net weight: 27/23(kgs)
Available options: DALI, 0-10V, PWM,  4Di.
Optional: 5- to 7-pin NEMA connector, Zhaga, and sensors

Product Code Rated Power LED Qty Luminous Flux G.W/N.W Packing Size
YMLED-6309 50W 224 5050 27/23(kgs) 1210x265x265mm 1PCS/CTN
YMLED-6309 80W 224 6600 27/23(kgs) 2850x550x300mm 2PCS/CTN
Material: PC
Angle: TYPE2
Chip: 5050 3030×4 7070
Size: 50×50
Order Code: 3292
Material: PC
Angle: TYPE3
Chip: 5050 3030×4 7070
Size: 50×50
Order Code: 3293
Material: PC
Angle: TYPE4
Chip: 5050 3030×4 7070
Size: 50×50
Order Code: 3294
Material: PC
Angle: TYPE5
Chip: 5050 3030×4 7070
Size: 50×50
Order Code: 3295
Material: PC
Angle: 100×160
Chip: 5050 3030×4 7070
Size: 50×50
Order Code: 2581
  • IP65 IK08Suitable for outdoor installation, with maximum impact resistance
  • DALI-2  Dimmable version available
  • RAL and Height finish on request
