Footpath Lighting

Home / Products / Footpath Lighting / YMLED-6309B Functional RGBW Pole Light Street Lighting

  • YMLED-6309B Functional RGBW Pole Light Street Lighting
  • YMLED-6309B Functional RGBW Pole Light Street Lighting

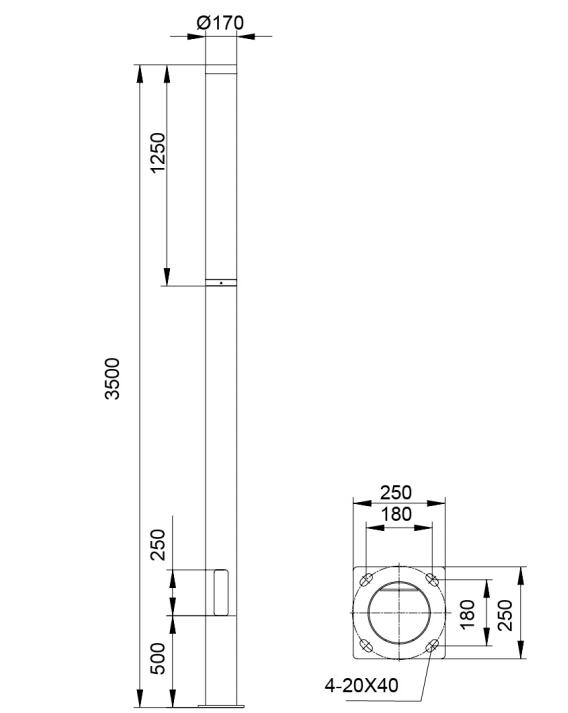

YMLED-6309B Functional RGBW Pole Light Street Lighting

The YMLED-6309B is a landscape street light that combines functional white lighting with dynamic RGBW colored lighting. The fixture features a robust die-cast aluminum body with a durable surface finish, providing high-quality white lighting (with optional high color rendering index and wide color temperature) and full-color dynamic lighting effects to create rich visual scenes.

It utilizes selected international brand LED chips for long lifespan and stable performance. With an IP65/IK08 protection rating and a wide operating temperature range, it is suitable for harsh outdoor environments. It supports multiple intelligent control protocols, allowing for independent or linked dimming of white and colored light, facilitating integration into smart lighting systems.

It is suitable for various urban spaces such as commercial streets, waterfront landscapes, and theme parks, where both basic lighting and artistic atmosphere creation are required.

CRI Colour Rendering Index: 70,80(Optional)
LED Chips: Osram 2835
CCT: 2200K-6500K
RAL finish on request; anti-UV polyester powder coating surface, salt spray resistance over 1,000 hours (optional)
Body Material: Die-cast aluminium,6063-T5
Power supply: AC 100-277 Vac; 50/60 Hz.
Useful life >  50,000h (Ta= 25°C)
Waterproof Protection & Impact Protection Rating: IP65/IK08
Overvoltage protection: 10kV (optional)
Operating temperature:  -30°C to +50°C.
Net weight: 19.5/18(kgs)
Available options: DALI, 0-10V, PWM,  4Di.
Optional: 5- to 7-pin NEMA connector, Zhaga, and sensors

Product Code Rated Power LED Qty Luminous Flux G.W/N.W Packing Size
YMLED-6309B 45W 224 5175 19.5/18(kgs) 175x175x1400mm
YMLED-6309B 60W 224 6300 19.5/18(kgs) 175x175x2300mm
Material: PC
Angle: TYPE2
Chip: 5050 3030×4 7070
Size: 50×50
Order Code: 3292
Material: PC
Angle: TYPE3
Chip: 5050 3030×4 7070
Size: 50×50
Order Code: 3293
Material: PC
Angle: TYPE4
Chip: 5050 3030×4 7070
Size: 50×50
Order Code: 3294
Material: PC
Angle: TYPE5
Chip: 5050 3030×4 7070
Size: 50×50
Order Code: 3295
Material: PC
Angle: 100×160
Chip: 5050 3030×4 7070
Size: 50×50
Order Code: 2581
  • IP65 IK08Suitable for outdoor installation, with maximum impact resistance
  • DALI-2  Dimmable version available
  • RAL and Height finish on request

Download Our Catalogue

FAQs
At YANGMING Lighting, we are dedicated to delivering high-quality outdoor lighting solutions. With over 25 years of OEM/ODM experience, we provide efficient, reliable, and customized products tailored to meet your specific project requirements.
The following section addresses frequently asked questions, aiming to help you gain a better understanding of YANGMING Lighting, as well as our products and services.
Contact Us
  • What is the lead time for orders?

    Samples: Typically 7 working days.
    Bulk Orders: Approximately 14-21 working days after receiving the deposit and confirming all specifications.

  • What are your payment terms?

    We accept payments in USD via T/T. The standard terms are:
    30% deposit before production, 70% balance before shipment.
    For orders below $1000 USD, full payment (100%) is required via T/T.

  • How are your products priced?

    Our quotations are typically based on EXW  or FOB trade terms.

  • Do you provide OEM/ODM customization services?

    Yes, we offer professional OEM/ODM customization services to meet specific requirements in product design, performance, and packaging.

    With extensive experience in non-standard customized products, our engineering team is able to provide technical solutions and initial feedback within 12 hours.

  • What packaging options are available?

    Standard packaging includes brown outer cartons and brown inner boxes.
    For orders of any quantity, we offer customization services, including: Laser-engraved logos on the lamp body. Custom-designed color boxes and cartons with your logo.

  • What is the minimum order quantity (MOQ)?

    Considering that most of our customers are involved in engineering projects, we don't have an MOQ.

  • What certifications do our products have?

    Our products comply with international standards, with CE and RoHS certifications for all categories. Some of the garden lights and street lamps also have ETL and ENEC certifications.
