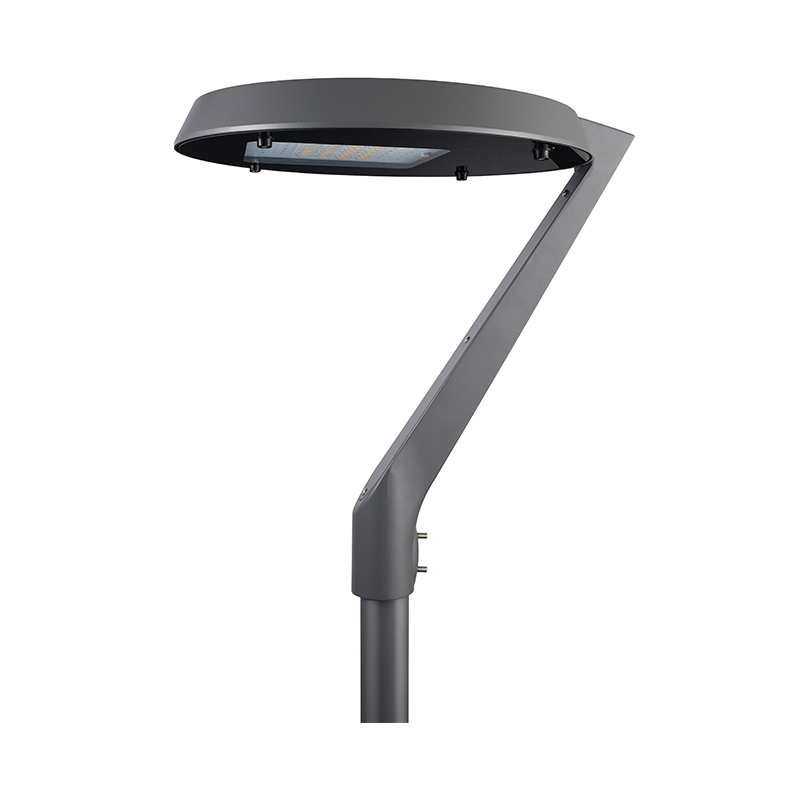

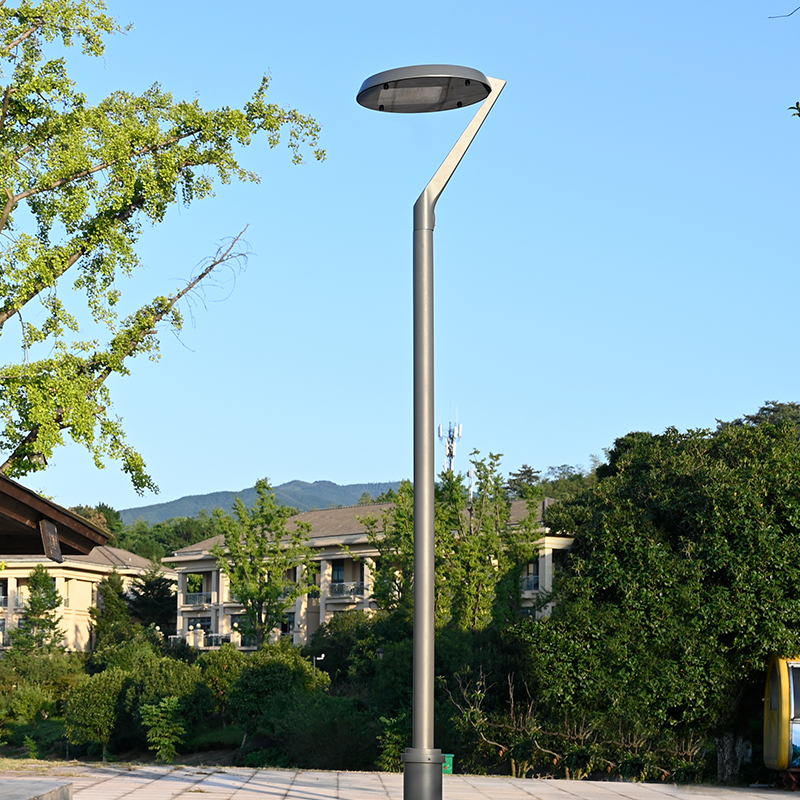

The YMLED-6143 is a durable, weatherproof outdoor lighting solution designed for residential use. Built with die-cast aluminium 6063-T5 housing and anti-UV polyester powder coating (optional RAL finish and 1,000+ hours salt spray resistance), it features an IP66 rating and IK10 impact resistance for reliable performance in temperatures from -30°C to +50°C.
Equipped with premium LED chips (Philips5050, CREE XTE/XPG, Ledstar 5050), it offers CRI 70/80 options and CCT adjustable from 2200K to 6500K, delivering over 50,000 hours of use. It runs on universal AC 100-277 Vac power, with optional overvoltage protection, dimming protocols (DALI, 0-10V, PWM, 4Di), NEMA/Zhaga connectors, and sensors. Perfect for pathways, patios, and landscapes, it balances durability, flexibility, and long-lasting performance.
CRI Colour Rendering Index: 70,80(Optional)
LED Chips: Philips5050, CREE XTE, CREE XPG, Ledstar 5050
CCT: 2200K-6500K
Body Material: Die-cast aluminium,6063-T5
RAL finish on request; anti-UV polyester powder coating surface, salt spray resistance over 1,000 hours (optional)
Power supply: AC 100-277 Vac; 50/60 Hz.
Useful life > 50,000h (Ta= 25°C)
Waterproof Protection & Impact Protection Rating: IP66/IK10
Overvoltage protection: 10kV (optional)
Operating temperature: -30°C to +50°C
Net weight: 10.3/8.8(kgs)
Available options: DALI, 0-10V, PWM, 4Di.
Optional: 5- to 7-pin NEMA connector, Zhaga, and sensors
| Product Code | Rated Power | LED Qty | Luminous Flux | G.W/N.W | Packing Size | Loading Qty |
| YMLED-6143 (16) | 30W | 16 | 3750 | 10.3/8.8(kgs) | 560x560x220mm | 400PCS/20'GP 1008PCS/40'HQ |
| YMLED-6143 (20) | 40W | 20 | 5000 | 10.3/8.8(kgs) | 560x560x220mm | |
| YMLED-6143 (24) | 55W | 24 | 6875 | 10.3/8.8(kgs) | 560x560x220mm | |
| YMLED-6143 (28) | 60W | 28 | 7500 | 10.3/8.8(kgs) | 560x560x220mm | |
| YMLED-6143 (32) | 70W | 32 | 8750 | 10.3/8.8(kgs) | 560x560x220mm | |
| YMLED-6143 (36) | 80W | 36 | 10000 | 10.3/8.8(kgs) | 560x560x220mm | |
| YMLED-6143 (40) | 90W | 40 | 11250 | 10.3/8.8(kgs) | 560x560x220mm | |
| YMLED-6143 (44) | 100W | 44 | 12500 | 10.3/8.8(kgs) | 560x560x220mm | |
| YMLED-6143 (48) | 105W | 48 | 13125 | 10.3/8.8(kgs) | 560x560x220mm | |
![]() |
![]() |
![]() |
| Material: PC
Angle: TYPE2
Chip: 5050 3030×4 7070
Size: 50×50
Order Code: 3292
|
Material: PC
Angle: TYPE3
Chip: 5050 3030×4 7070
Size: 50×50
Order Code: 3293
|
Material: PC
Angle: TYPE4
Chip: 5050 3030×4 7070
Size: 50×50
Order Code: 3294
|
![]() |
![]() |
|
| Material: PC
Angle: TYPE5
Chip: 5050 3030×4 7070
Size: 50×50
Order Code: 3295
|
Material: PC
Angle: 100×160
Chip: 5050 3030×4 7070
Size: 50×50
Order Code: 2581
|
RAL finish on request

Samples: Typically 7 working days.
Bulk Orders: Approximately 14-21 working days after receiving the deposit and confirming all specifications.
We accept payments in USD via T/T. The standard terms are:
30% deposit before production, 70% balance before shipment.
For orders below $1000 USD, full payment (100%) is required via T/T.
Our quotations are typically based on EXW or FOB trade terms.
Yes, we offer professional OEM/ODM customization services to meet specific requirements in product design, performance, and packaging.
With extensive experience in non-standard customized products, our engineering team is able to provide technical solutions and initial feedback within 12 hours.
Standard packaging includes brown outer cartons and brown inner boxes.
For orders of any quantity, we offer customization services, including: Laser-engraved logos on the lamp body. Custom-designed color boxes and cartons with your logo.
Considering that most of our customers are involved in engineering projects, we don't have an MOQ.
Our products comply with international standards, with CE and RoHS certifications for all categories. Some of the garden lights and street lamps also have ETL and ENEC certifications.
