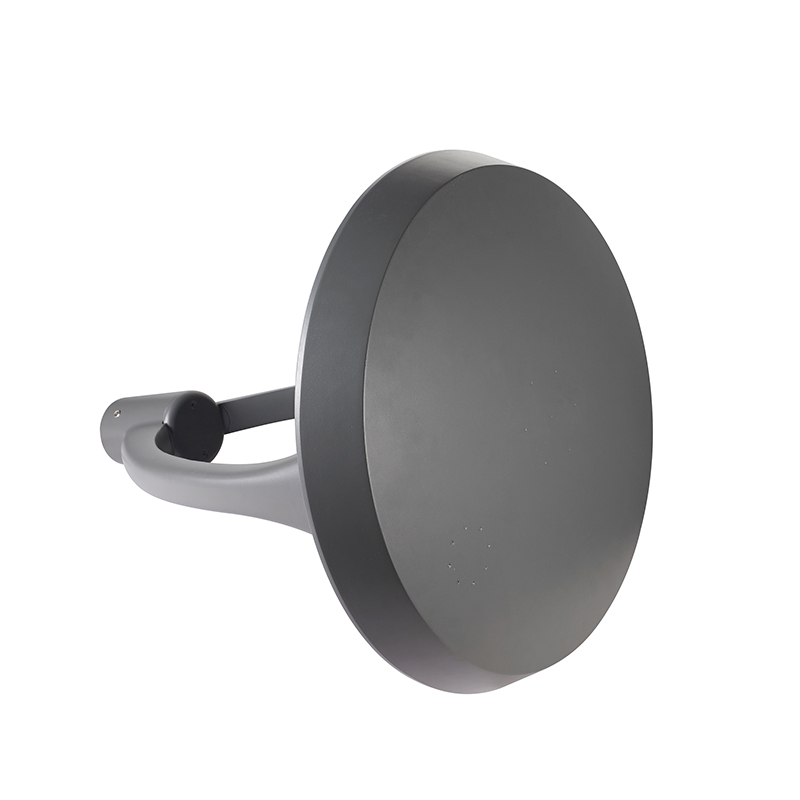

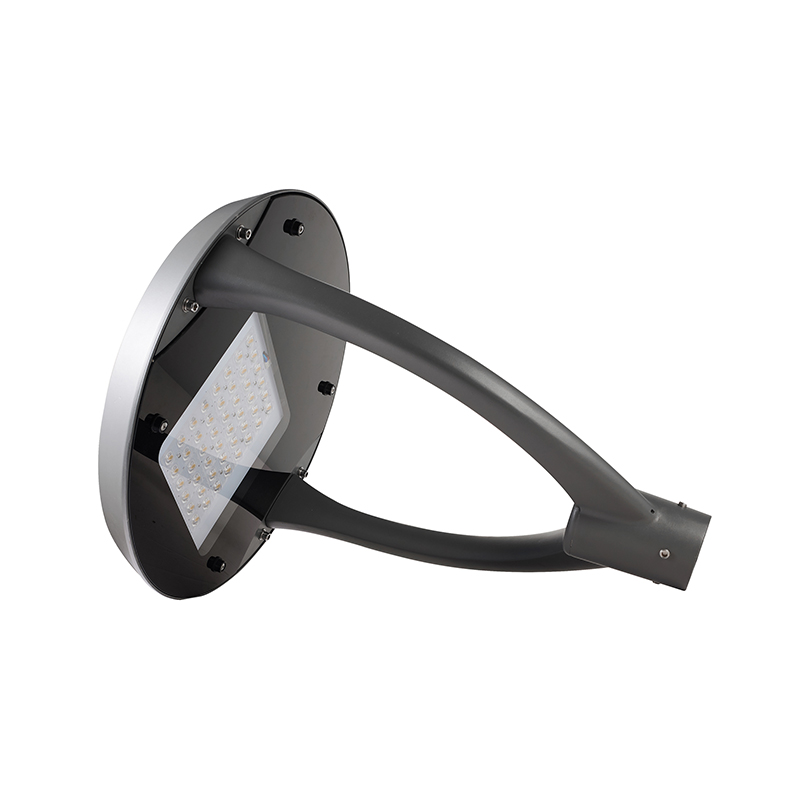

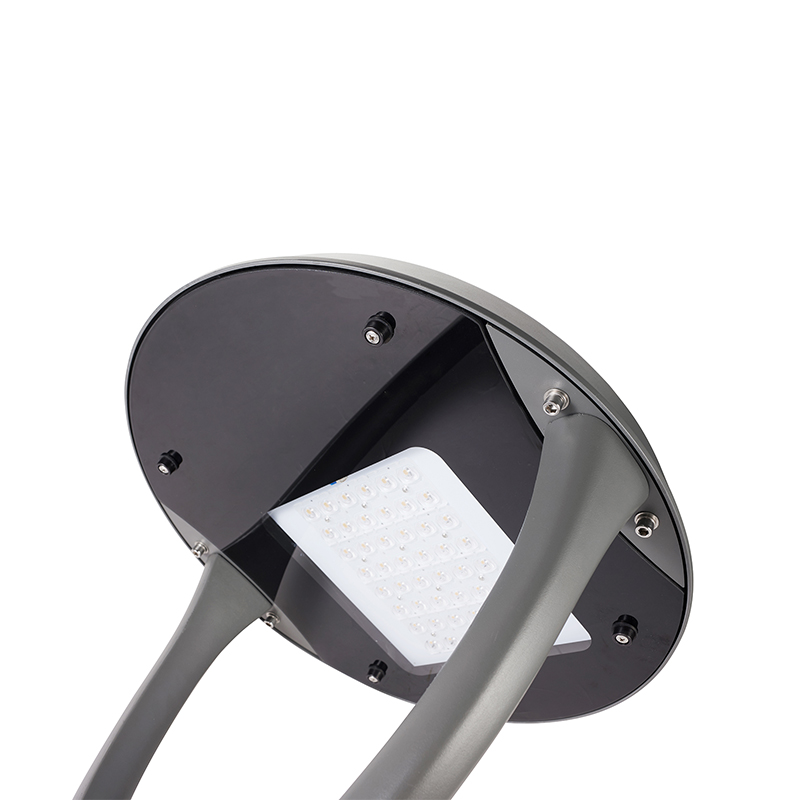

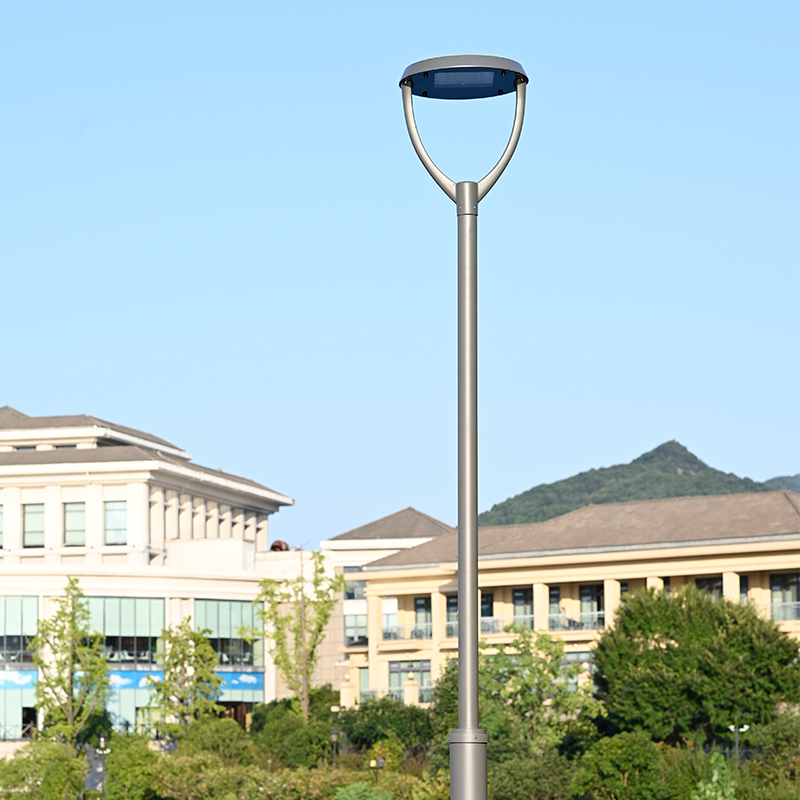

The YMLED-6142 outdoor waterproof LED garden light is suitable for outdoor scenes such as courtyards and gardens, making it a top choice for outdoor lighting due to its robust quality and flexible configuration.
The light source is equipped with high-end chips such as the Philips 5050 and Cree XTE, offering a selectable color rendering index of 70/80 and an adjustable color temperature range of 2200K-6500K, accurately reproducing the true colors of the scenery and flexibly creating diverse atmospheres.
The body is made of 6063-T5 die-cast aluminum, supporting custom coatings based on RAL color charts. An optional UV-resistant powder coating is available, with over 1000 hours of salt spray resistance, demonstrating outstanding corrosion and weather resistance.
It features an IP66 waterproof rating, IK10 shock resistance, a wide operating temperature range of -30°C to +50°C, a wide voltage range of 100-277V, a lifespan exceeding 50,000 hours, and optional 110kV overvoltage protection.
Supports multiple dimming controls, including DALI and 0-10V, and offers optional NEMA and Zhaga connectors and sensors. Weighing only 8.8/10.3kg, it balances easy installation with a robust structure.
This luminaire combines practicality and design aesthetics, making it suitable for private gardens and public parks. It is a long-lasting and durable outdoor lighting solution.
CRI Colour Rendering Index: 70,80(Optional)
LED Chips: Philips5050, CREE XTE, CREE XPG, Ledstar 5050
CCT: 2200K-6500K
Body Material: Die-cast aluminium,6063-T5
RAL finish on request; anti-UV polyester powder coating surface, salt spray resistance over 1,000 hours (optional)
Power supply: AC 100-277 Vac; 50/60 Hz.
Useful life > 50,000h (Ta= 25°C)
Waterproof Protection & Impact Protection Rating: IP66/IK10
Overvoltage protection: 10kV (optional)
Operating temperature: -30°C to +50°C
Net weight: 10.3/8.8(kgs)
Available options: DALI, 0-10V, PWM, 4Di.
Optional: 5- to 7-pin NEMA connector, Zhaga, and sensors
| Product Code | Rated Power | LED Qty | Luminous Flux | G.W/N.W | Packing Size | Loading Qty |
| YMLED-6142 (16) | 30W | 16 | 3690 | 10.3/8.8(kgs) | 560x560x220mm | 400PCS/20'GP 1008PCS/40'HQ |
| YMLED-6142 (20) | 40W | 20 | 4920 | 10.3/8.8(kgs) | 560x560x220mm | |
| YMLED-6142 (24) | 55W | 24 | 6765 | 10.3/8.8(kgs) | 560x560x220mm | |
| YMLED-6142 (28) | 60W | 28 | 7380 | 10.3/8.8(kgs) | 560x560x220mm | |
| YMLED-6142 (32) | 70W | 32 | 8610 | 10.3/8.8(kgs) | 560x560x220mm | |
| YMLED-6142 (36) | 80W | 36 | 9840 | 10.3/8.8(kgs) | 560x560x220mm | |
| YMLED-6142 (40) | 90W | 40 | 11070 | 10.3/8.8(kgs) | 560x560x220mm | |
| YMLED-6142 (44) | 100W | 44 | 12300 | 10.3/8.8(kgs) | 560x560x220mm | |
| YMLED-6142 (48) | 105W | 48 | 12915 | 10.3/8.8(kgs) | 560x560x220mm | |
![]() |
![]() |
![]() |
| Material: PC
Angle: TYPE2
Chip: 5050 3030×4 7070
Size: 50×50
Order Code: 3292
|
Material: PC
Angle: TYPE3
Chip: 5050 3030×4 7070
Size: 50×50
Order Code: 3293
|
Material: PC
Angle: TYPE4
Chip: 5050 3030×4 7070
Size: 50×50
Order Code: 3294
|
![]() |
![]() |
|
| Material: PC
Angle: TYPE5
Chip: 5050 3030×4 7070
Size: 50×50
Order Code: 3295
|
Material: PC
Angle: 100×160
Chip: 5050 3030×4 7070
Size: 50×50
Order Code: 2581
|
RAL finish on request

Samples: Typically 7 working days.
Bulk Orders: Approximately 14-21 working days after receiving the deposit and confirming all specifications.
We accept payments in USD via T/T. The standard terms are:
30% deposit before production, 70% balance before shipment.
For orders below $1000 USD, full payment (100%) is required via T/T.
Our quotations are typically based on EXW or FOB trade terms.
Yes, we offer professional OEM/ODM customization services to meet specific requirements in product design, performance, and packaging.
With extensive experience in non-standard customized products, our engineering team is able to provide technical solutions and initial feedback within 12 hours.
Standard packaging includes brown outer cartons and brown inner boxes.
For orders of any quantity, we offer customization services, including: Laser-engraved logos on the lamp body. Custom-designed color boxes and cartons with your logo.
Considering that most of our customers are involved in engineering projects, we don't have an MOQ.
Our products comply with international standards, with CE and RoHS certifications for all categories. Some of the garden lights and street lamps also have ETL and ENEC certifications.
