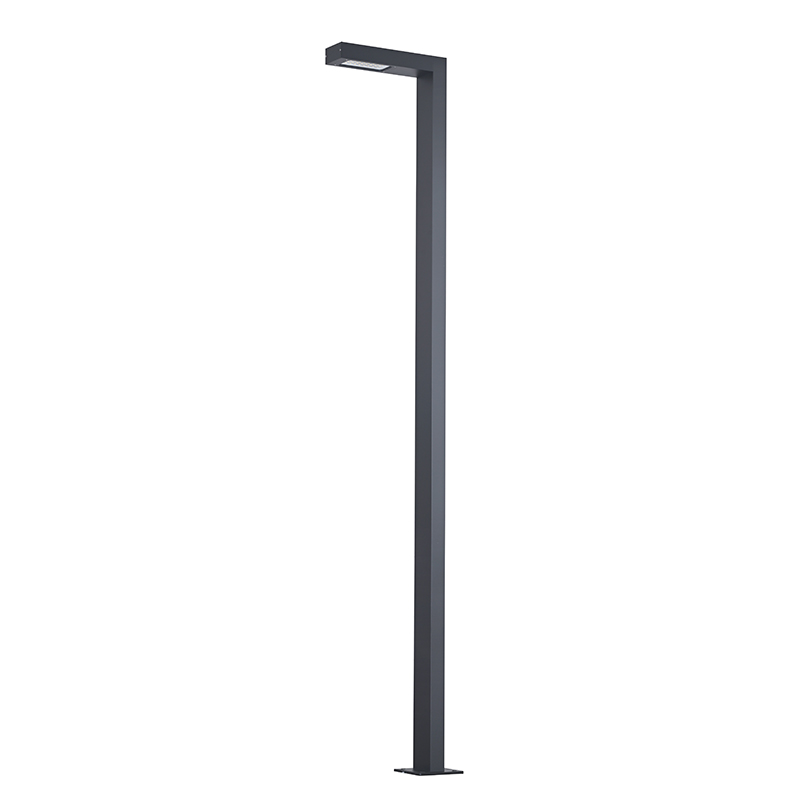

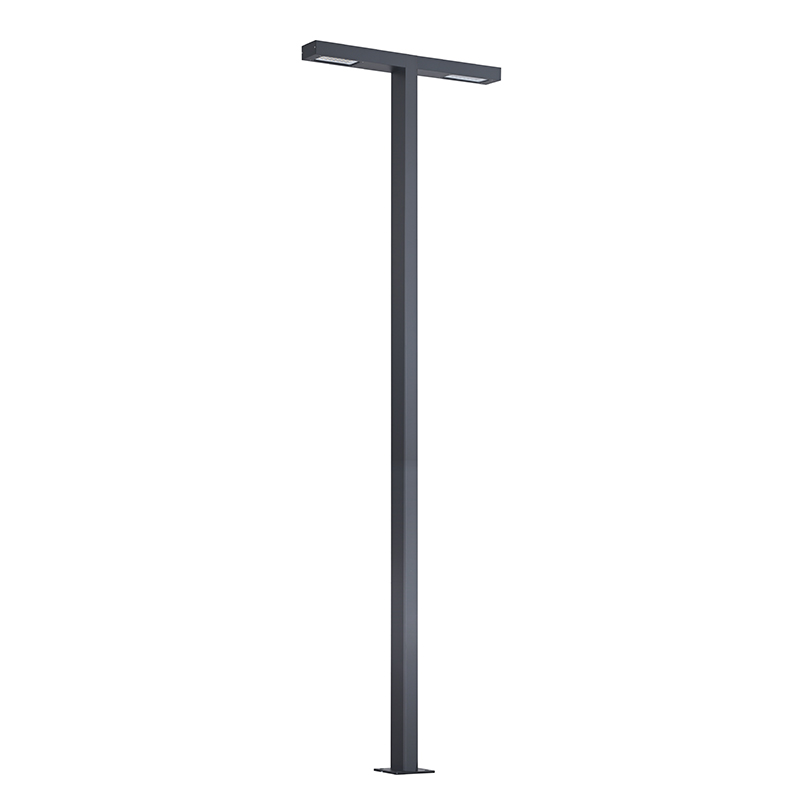

YMLED-6412 Integrated High-Performance LED Road Lighting Fixture

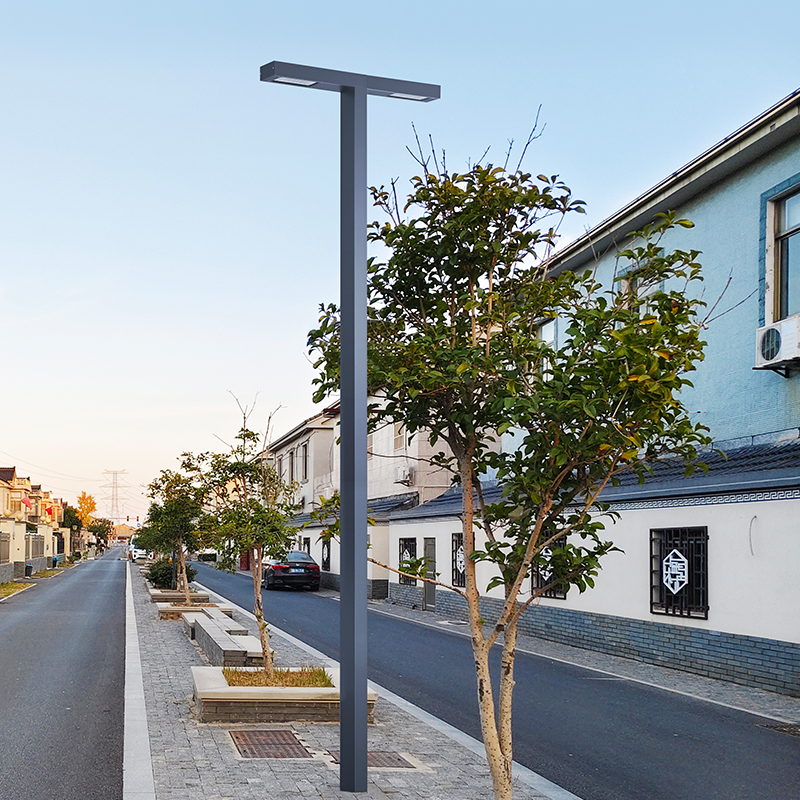

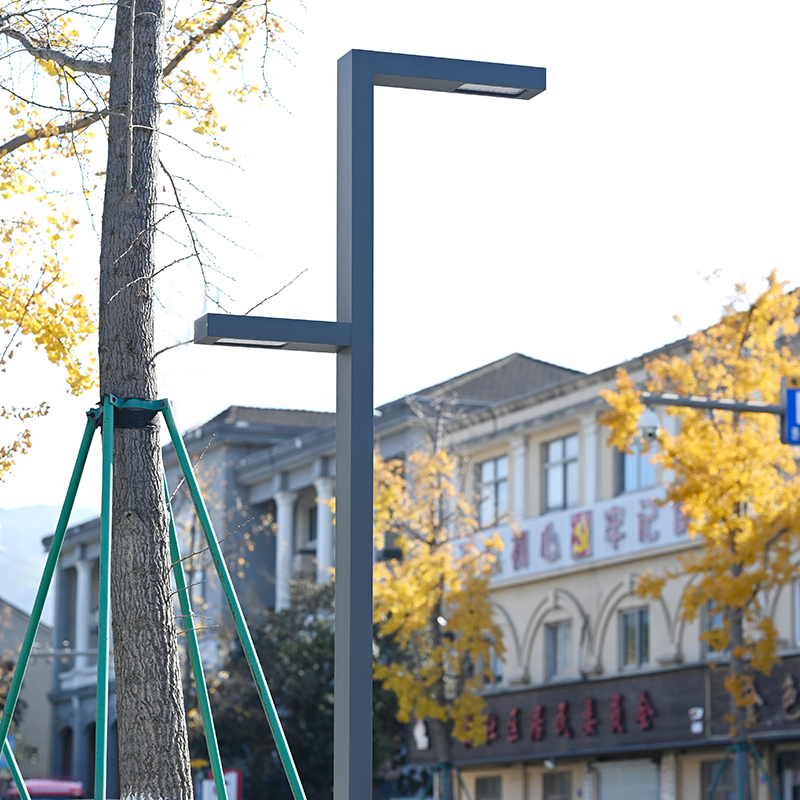

The YMLED-6412 is a high-performance LED street light designed specifically for urban main roads, expressways, industrial parks, and other similar scenarios.  With its minimalist, integrated lamp post design and professional optical design, it provides efficient and uniform road lighting.
The lamp body is made of 6063-T5 die-cast aluminum, coated with a UV-resistant polyester powder coating, and supports RAL color customization.  Optional features include over 1000 hours of salt spray corrosion resistance treatment.  With an IP65/IK08 protection rating, it can operate stably for extended periods in complex outdoor environments, including heavy rain, dust storms, and external impacts.
The light source supports high-quality LEDs such as Philips 5050 and CREE XTE/XPG, with adjustable color temperature from 2200K to 6500K and a selectable color rendering index of 70/80, meeting the lighting needs of different roads. The wide voltage design is compatible with power grids in most regions worldwide.  It has a lifespan of over 50,000 hours at 25°C and offers optional 10kV overvoltage protection, significantly reducing maintenance costs.
The luminaire is available in multiple sizes and weights (7/6kgs, 7.5/6.5kgs, 11/9.8kgs) and supports dimming protocols such as DALI, 0-10V, and PWM, as well as expansion options including NEMA connectors, Zhaga interfaces, and sensors. This meets the needs of smart lighting upgrades and makes it an ideal solution for modern road lighting.

CRI Colour Rendering Index: 70,80(Optional)
LED Chips: Philips5050, CREE XTE, CREE XPG, Ledstar 5050 (selectable)
CCT: 2200K-6500K
RAL finish on request; anti-UV polyester powder coating surface, salt spray resistance over 1,000 hours (optional)
Body Material: Die-cast aluminium,6063-T5
Power supply: AC 100-277 Vac; 50/60 Hz.
Useful life >  50,000h (Ta= 25°C)
Waterproof Protection & Impact Protection Rating: IP65/IK08
Overvoltage protection: 10kV (optional)
Operating temperature: -30°C to +50°C.
Net weight: 7/6(kgs), 7.5/6.5(kgs), 11/9.8(kgs)
Available options: DALI, 0-10V, PWM,  4Di.
Optional: 5- to 7-pin NEMA connector, Zhaga, and sensors

Product Code Rated Power LED Qty Luminous Flux G.W/N.W Packing Size

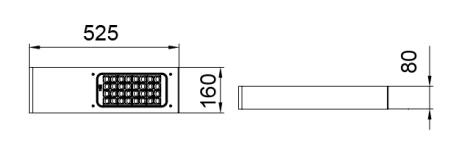

YMLED-6412S 30W 32 3960 7/6(kgs) 800X180X95mm
YMLED-6412S 60W 32 7920 7/6(kgs) 800X180X95mm

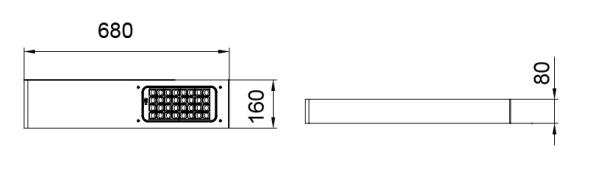

YMLED-6412M 70W 32 9240 7.5/6.5(kgs) 955X180X95mm
YMLED-6412M 90W 32 11880 7.5/6.5(kgs) 955X180X95mm

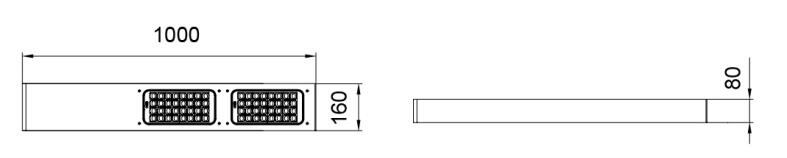

YMLED-6412L 120W 64 15840 11/9.8(kgs) 1275X180X95mm
YMLED-6412L 150W 64 19800 11/9.8(kgs) 1275X180X95mm
YMLED-6412L 180W 64 23760 11/9.8(kgs) 1275X180X95mm
Material: PC
Angle: TYPE2
Chip: 5050 3030×4 7070
Size: 50×50
Order Code: 3292
Material: PC
Angle: TYPE3
Chip: 5050 3030×4 7070
Size: 50×50
Order Code: 3293
Material: PC
Angle: TYPE4
Chip: 5050 3030×4 7070
Size: 50×50
Order Code: 3294
Material: PC
Angle: TYPE5
Chip: 5050 3030×4 7070
Size: 50×50
Order Code: 3295
Material: PC
Angle: 100×160
Chip: 5050 3030×4 7070
Size: 50×50
Order Code: 2581
  • IP65 IK08 Suitable for outdoor installation, with maximum impact resistance
  • DALI-2  Dimmable version available
  • RAL finish on request
