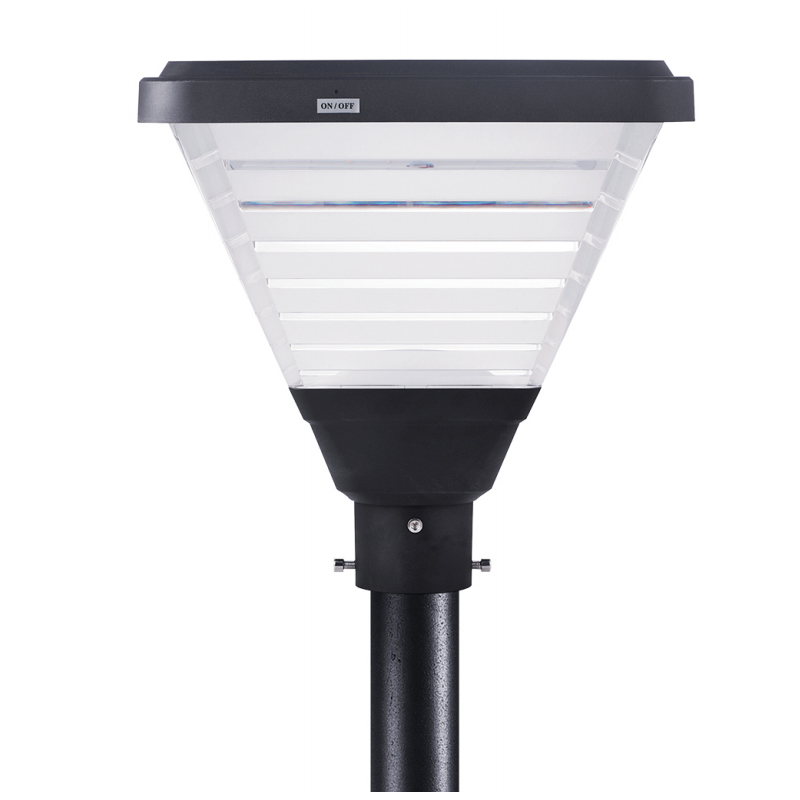

YMLED-6803 Outdoor Solar Post Top LED Lamp

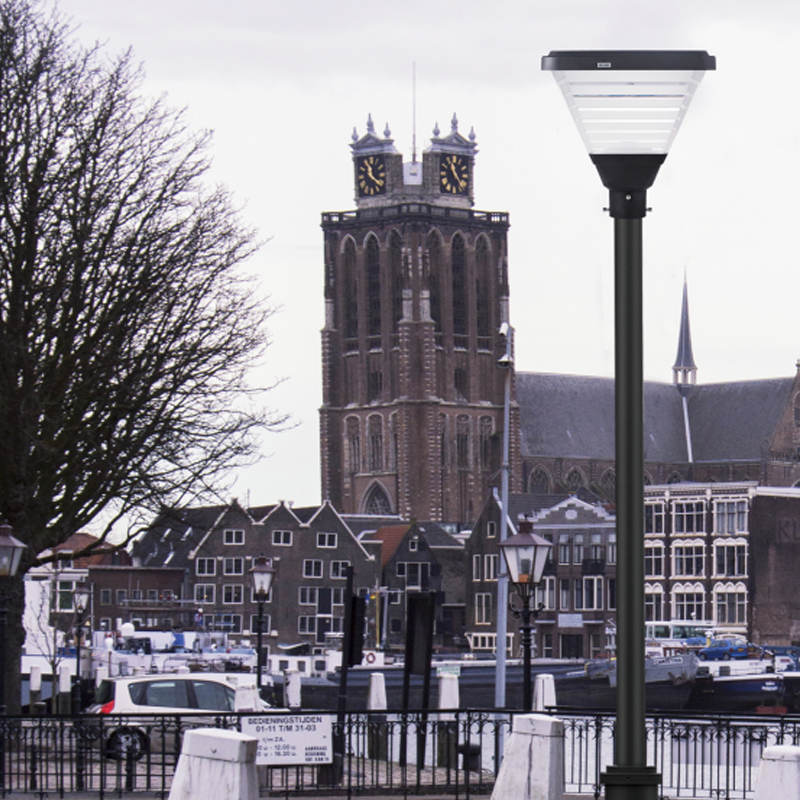

The YMLED-6803 is a solar-powered LED bollard light specifically designed for courtyards, park pathways, and villa exteriors.  With its minimalist design and solar energy-saving technology, it creates an outdoor lighting experience that is both aesthetically pleasing and environmentally friendly.
The lamp body is made of 6063-T5 die-cast aluminum, coated with a UV-resistant polyester powder coating, and supports RAL color customization.  Optional features include over 1000 hours of salt spray corrosion resistance, IP65 dust and water resistance, and IK08 impact resistance, ensuring long-term stable operation in complex outdoor environments such as rain, snow, and dust. The light source uses high-quality LEDs such as Philips 5050 and CREE XTE/XPG, with a color rendering index (CRI) of 70/80 and adjustable color temperature from 2200K to 6500K, providing both a warm and elegant nighttime atmosphere and clear localized lighting.
The product is compatible with a wide voltage range of AC 100-277 Vac, has a lifespan of over 50,000 hours at 25℃, and offers optional 10kV overvoltage protection. It supports dimming protocols such as DALI, 0-10V, and PWM, and can be connected to NEMA connectors, Zhaga interfaces, and various sensors, meeting the needs of intelligent lighting upgrades. It is a cost-effective choice for outdoor bollard lighting.

CRI Colour Rendering Index: 70,80(Optional)
LED Chips: Philips5050, CREE XTE, CREE XPG, Ledstar 5050 (selectable)
CCT: 2200K-6500K
RAL finish on request; anti-UV polyester powder coating surface, salt spray resistance over 1,000 hours (optional)
Body Material: Die-cast aluminium,6063-T5
Power supply: AC 100-277 Vac; 50/60 Hz.
Useful life >  50,000h (Ta= 25°C)
Waterproof Protection & Impact Protection Rating: IP65/IK08
Overvoltage protection: 10kV (optional)
Operating temperature: -30°C to +50°C.
Net weight: 5/6.5(kgs)
Available options: DALI, 0-10V, PWM,  4Di.
Optional: 5- to 7-pin NEMA connector, Zhaga, and sensors

Solar panel Battery CCT Charging time IP Rating Working condition G.W/N.W Packing Size
5V/20W 3.2V/20AH 3000K/6500K 3~5h IP65 -20℃ / 50℃ 5/6.5(kgs) 410x410x430mm
Material: PC
Angle: TYPE2
Chip: 5050 3030×4 7070
Size: 50×50
Order Code: 3292
Material: PC
Angle: TYPE3
Chip: 5050 3030×4 7070
Size: 50×50
Order Code: 3293
Material: PC
Angle: TYPE4
Chip: 5050 3030×4 7070
Size: 50×50
Order Code: 3294
Material: PC
Angle: TYPE5
Chip: 5050 3030×4 7070
Size: 50×50
Order Code: 3295
Material: PC
Angle: 100×160
Chip: 5050 3030×4 7070
Size: 50×50
Order Code: 2581
  • IP65 IK08 Suitable for outdoor installation, with maximum impact resistance
  • DALI-2  Dimmable version available
  • RAL finish on request
