YMLED-6209A Popular Square Waterproof LED Lawn Light

The YMLED-6209A is a square, waterproof LED lawn light specifically designed for modern landscape design.  Suitable for courtyards, plazas, and commercial walkways, its minimalist square lines and high protection performance create a low-profile lighting experience that is both modern and practical.
The lamp body is made of 6063-T5 die-cast aluminum, with a UV-resistant polyester powder coating on the surface. It supports RAL color customization and offers optional anti-corrosion treatment for over 1000 hours of salt spray resistance. With an IP65/IK08 protection rating, it can operate stably for extended periods in complex outdoor environments, including those with moisture, dust, and physical impact.
The light source supports various options, including Philips 3030, Philips 2835, CREE COB, and E27 lamp holders.  Color temperature is adjustable from 2200K to 6500K, and the color rendering index (CRI) is available in 70 or 80. This allows for both soft ambient lighting for lawns and walkways, and clear localized lighting as needed. The wide voltage design is compatible with power grids in most regions worldwide, and the lifespan exceeds 50,000 hours at 25℃, significantly reducing maintenance costs.

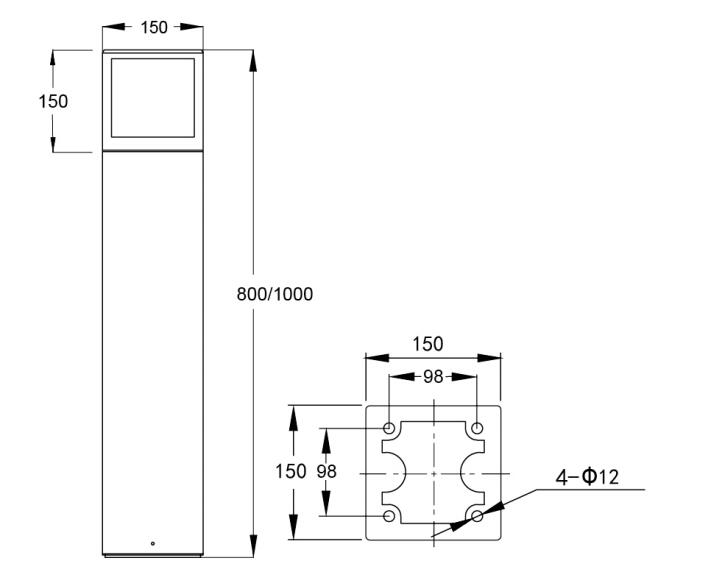

The luminaire is available in three sizes: 600mm, 800mm, and 1000mm, with corresponding weights of 4.5KG, 5KG, and 5.5KG. It supports DALI dimming or basic switch control, making it an ideal choice for creating modern and minimalist outdoor nightscapes.

CRI Colour Rendering Index: 70,80(Optional)
LED Chips: Philips3030、Philips2835、CREE COB、E27
CCT: 2200K-6500K
RAL finish on request; anti-UV polyester powder coating surface, salt spray resistance over 1,000 hours (optional)
Body Material: Die-cast aluminium,6063-T5
Power supply: AC 100-277 Vac; 50/60 Hz.
Useful life >  50,000h (Ta= 25°C)
Waterproof Protection & Impact Protection Rating: IP65/IK08
Net weight: 600mm 4.5KG/800mm 5KG/1000mm 5.5KG
Operating temperature: -30°C to +50°C.
Available options: DALI, ON/OFF

Protection grade Corrosion-proof capability Working condition Isolation class Power voltage Max power
IP65 Class II -35℃ ~ +45℃ Class I 220V(±10%)/50Hz 10W(E27)
IP65 Class II -35℃ ~ +45℃ Class I 100~240V/50Hz 14W(COB)
  • IP65 IK08Suitable for outdoor installation, with maximum impact resistance
  • DALI-2  Dimmable version available
  • RAL and Height finish on request
