YM6702 Aluminum Round Shape LED Module With Lens

The YM6702 Aluminum Round Shape LED Module with Lens features an integrated circular die-cast aluminum housing and a professional optical lens, resulting in a compact and robust structure. It supports configurations of 16 to 32 high-efficiency LED beads and utilizes secondary light distribution technology to achieve Type 1, Type 2, and Type 3 light distribution curves, flexibly adapting to different lighting scenarios.

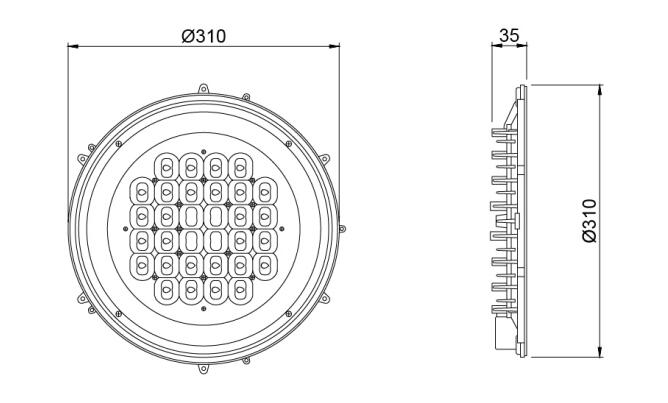

The module has a diameter of 310mm, a central mounting hole diameter of 110mm, and an overall thickness of 35mm, ensuring strong installation compatibility. Depending on the configuration, the power range covers 30W to 120W, with a maximum luminous flux of up to 15000lm. It employs an efficient heat dissipation structure design to ensure long-term stable operation of the LEDs, making it suitable for professional outdoor lighting projects such as road lighting, high-mast lighting, and plaza lighting.
Multiple color temperatures and color rendering indices are available, and it supports intelligent dimming interfaces to meet diverse lighting design requirements.

Product Code Rated Power Nominal initial FLUX LED Qty G.W/N.W Packing Size
(led current 530mA)
ym6702(16) 30W 3960lm 16 2(kgs) 330*330*45MM
ym6702(20) 40W 5280lm 20 2(kgs) 330*330*45MM
ym6702(24) 55W 7260lm 24 2(kgs) 330*330*45MM
ym6702(28) 60W 2920lm 28 2(kgs) 330*330*45MM
ym6702(32) 70W 9240lm 32 2(kgs) 330*330*45MM
  • IP65 IK08 Suitable for outdoor installation, with maximum impact resistance
  • DALI-2  Dimmable version available
  • RAL finish on request
