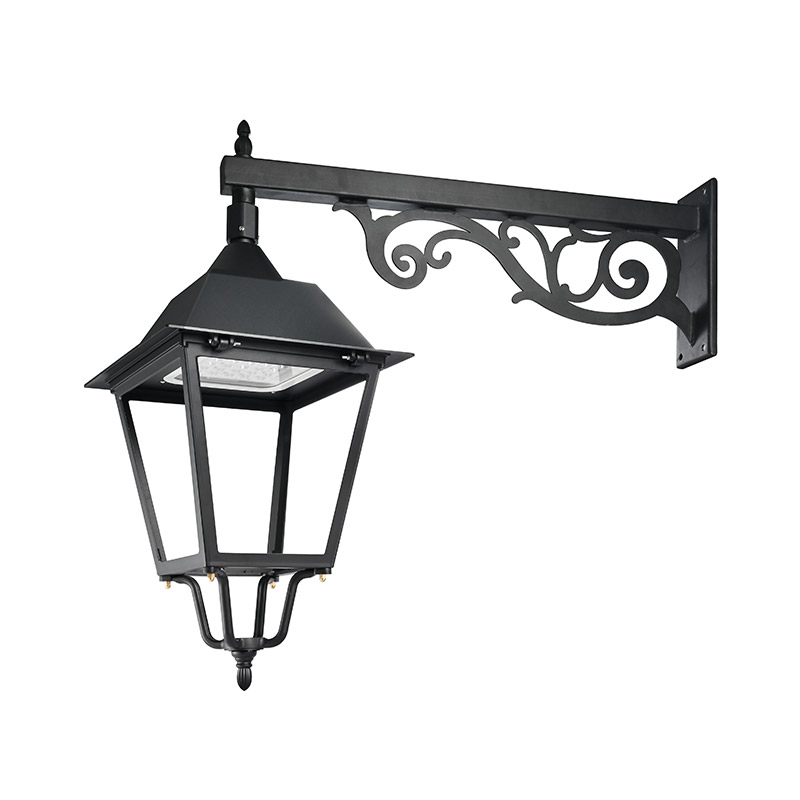

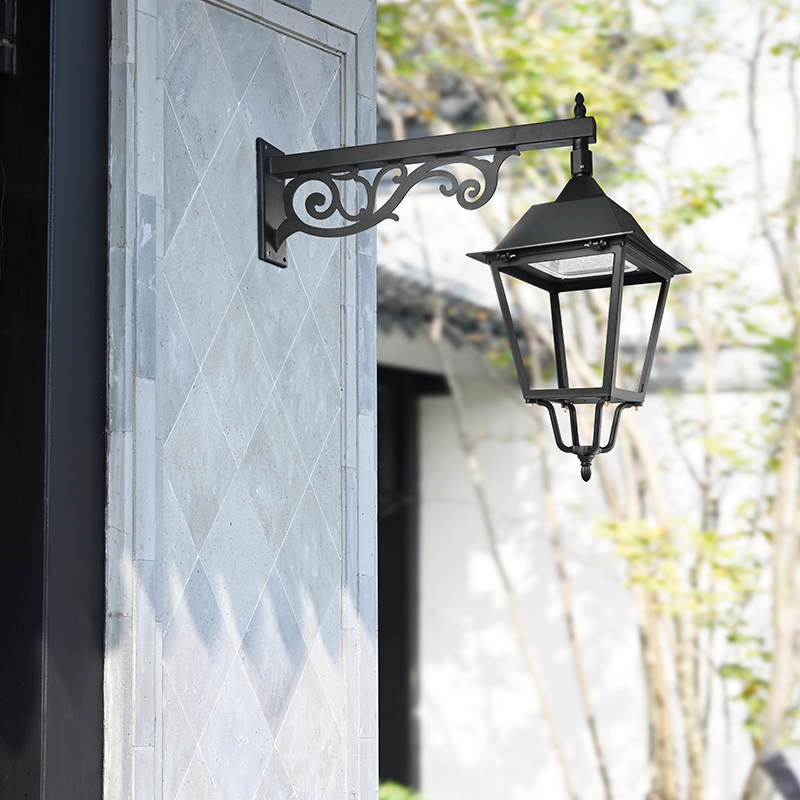

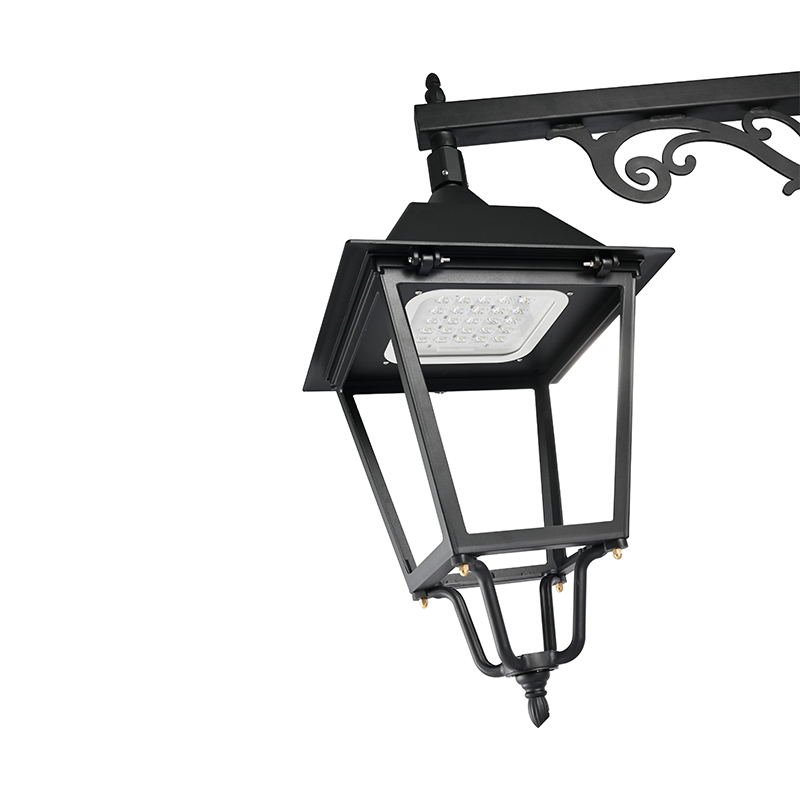

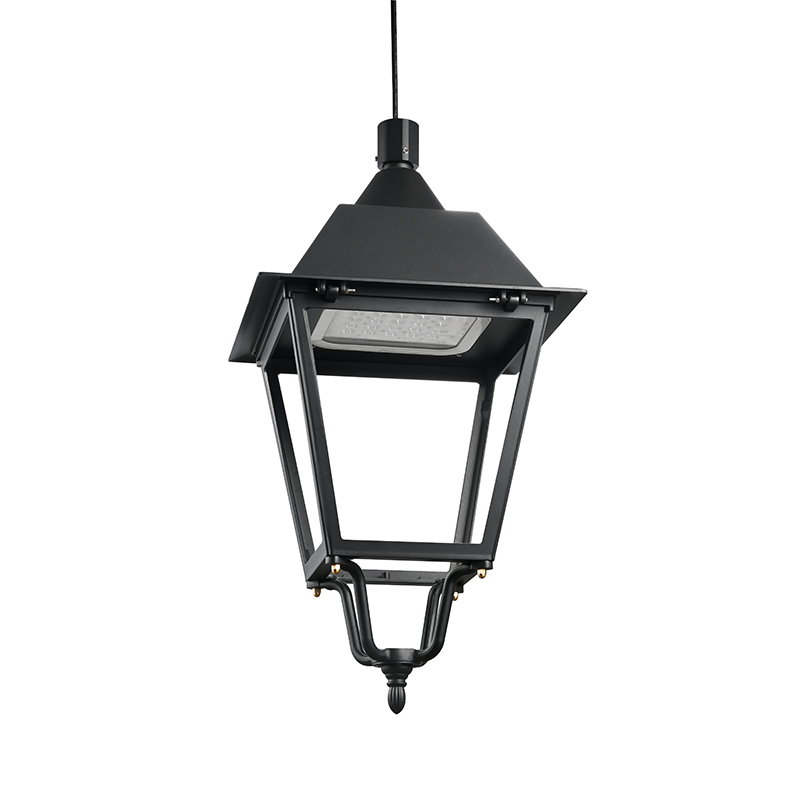

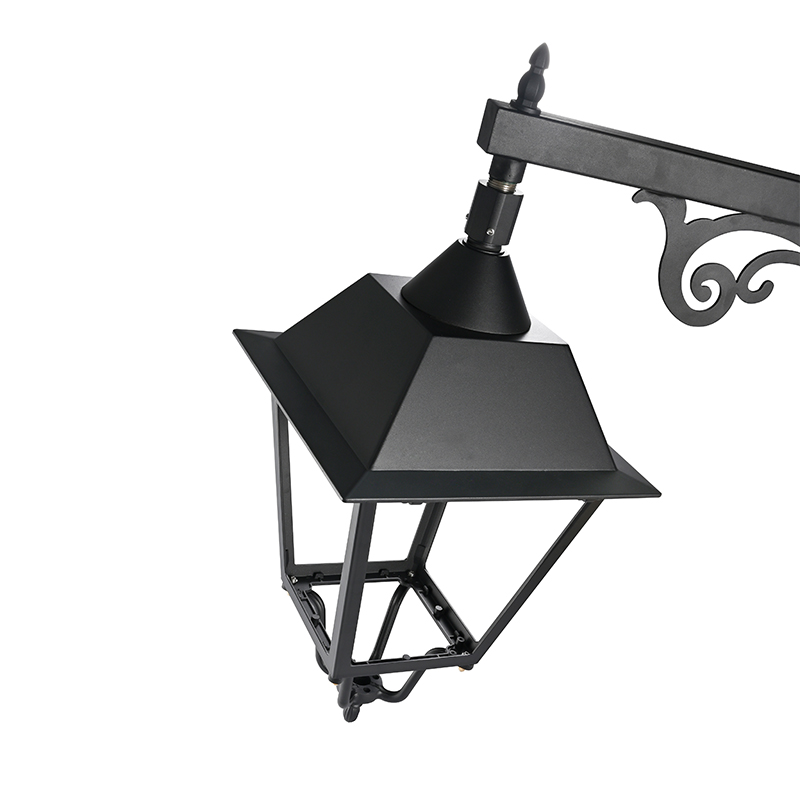

YMLED-6136C Aluminum Suspended LED Garden Light Wall Light

The YMLED-6136C is an aluminum suspended LED wall light designed specifically for outdoor garden and wall lighting, combining a classic appearance with modern lighting technology. It features high-quality LED chips such as Philips 5050, CREE XTE, CREE XPG, or Ledstar 5050, offering a selectable CRI of 70 or 80, and a color temperature range from 2200K to 6500K to meet diverse lighting needs.

The lamp body is made of die-cast aluminum (6063-T5), supports RAL color customization, and features an anti-UV polyester powder coating with optional corrosion resistance treatment exceeding 1000 hours of salt spray testing. The power supply is compatible with AC 100-277Vac, 50/60Hz, and has a lifespan of over 50,000 hours at 25°C.

It boasts an IP65 dustproof and waterproof rating and IK08 impact resistance, with an operating temperature range of -30°C to +50°C. Optional features include 110kV overvoltage protection, 1DALI/0-10V/PWM/4Di dimming interfaces, and 15-7 pin NEMA/Zhaga connectors and sensor integration. With a net weight of 8.1/6.7 kg, it is a reliable choice for garden and wall lighting.

CRI Colour Rendering Index: 70,80(Optional)
LED Chips: Philips5050、CREE XTE、CREE XPG、Ledstar 5050
CCT: 2200K-6500K
Body Material: Die-cast aluminium,6063-T5
RAL finish on request; anti-UV polyester powder coating surface, salt spray resistance over 1,000 hours (optional)
Power supply: AC 100-277 Vac; 50/60 Hz.
Useful life >  50,000h (Ta= 25°C)
Waterproof Protection & Impact Protection Rating: IP65/IK08
Overvoltage protection: 110kV (optional)
Operating temperature: -30°C to +50°C
Net weight: 8.1/6.7(kgs)
Available options: DALI, 0-10V, PWM,  4Di.
Optional: 5- to 7-pin NEMA connector, Zhaga, and sensors

Product Code Rated Power LED Qty Luminous Flux G.W/N.W Packing Size Loading Qty
YMLED-6136C(16) 30W 16 3600 8.1/6.7(kgs) 440X440X770mm 130PCS/20'GP
420PCS/40'GP
YMLED-6136C(20) 40W 20 4800 8.1/6.7(kgs) 440X440X770mm
YMLED-6136C(24) 55W 24 6490 8.1/6.7(kgs) 440X440X770mm
Material: PC
Angle: TYPE2
Chip: 5050 3030×4 7070
Size: 50×50
Order Code: 3292
Material: PC
Angle: TYPE3
Chip: 5050 3030×4 7070
Size: 50×50
Order Code: 3293
Material: PC
Angle: TYPE4
Chip: 5050 3030×4 7070
Size: 50×50
Order Code: 3294
Material: PC
Angle: TYPE5
Chip: 5050 3030×4 7070
Size: 50×50
Order Code: 3295
Material: PC
Angle: 100×160
Chip: 5050 3030×4 7070
Size: 50×50
Order Code: 2581
  • IP65 IK08 Suitable for outdoor installation, with maximum impact resistance
  • DALI-2  Dimmable version available
  • RAL finish on request
