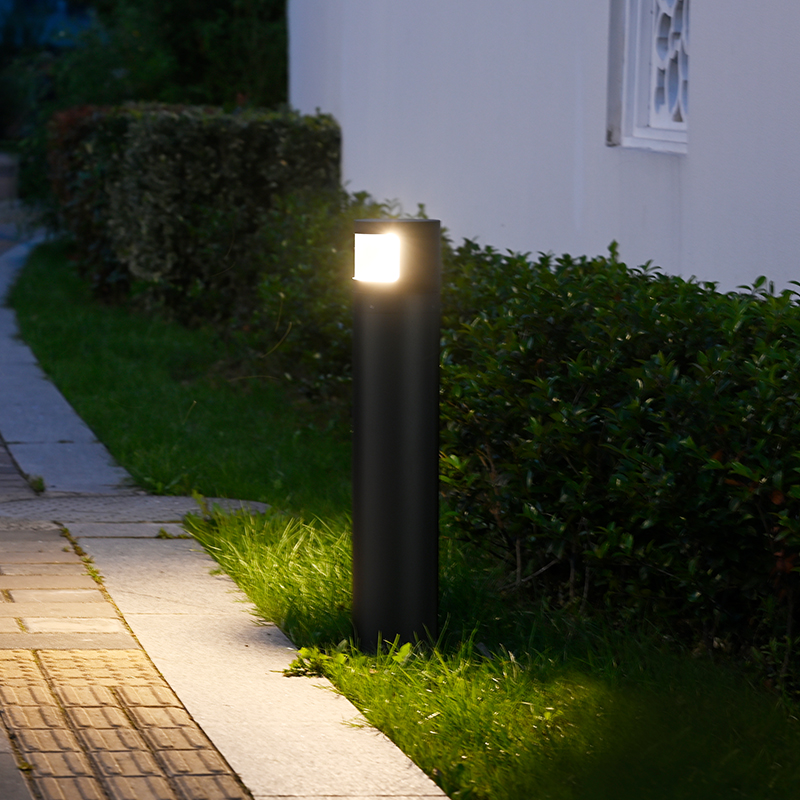

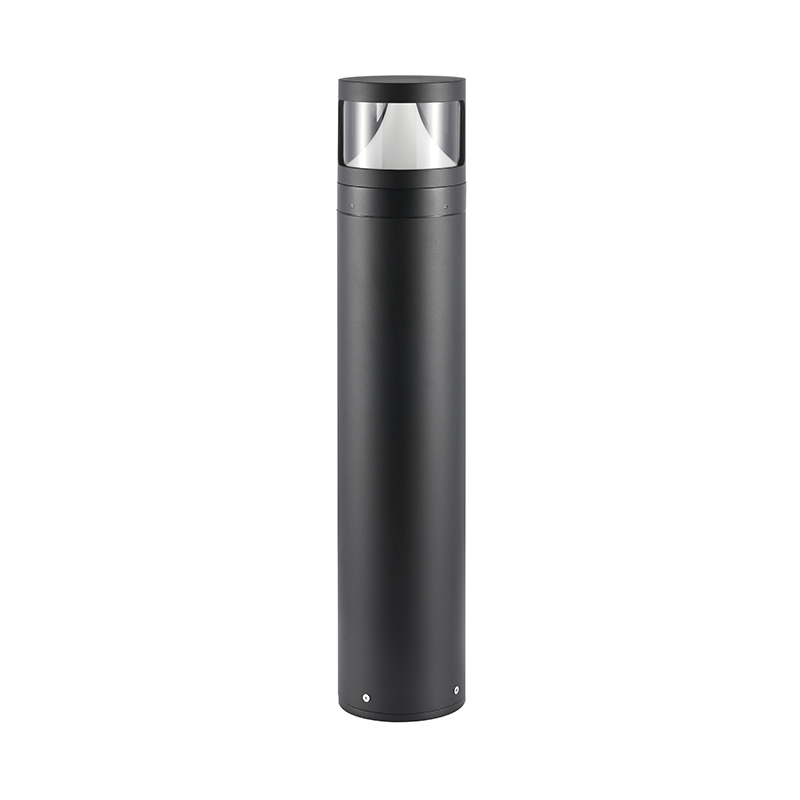

The YMLED-6240 180° directional LED bollard light is a modern LED bollard light designed specifically for pathways, garden paths, and landscape areas. Its 180° directional light design and simple cylindrical shape provide precise illumination, preventing light waste and creating a comfortable nighttime walking experience.

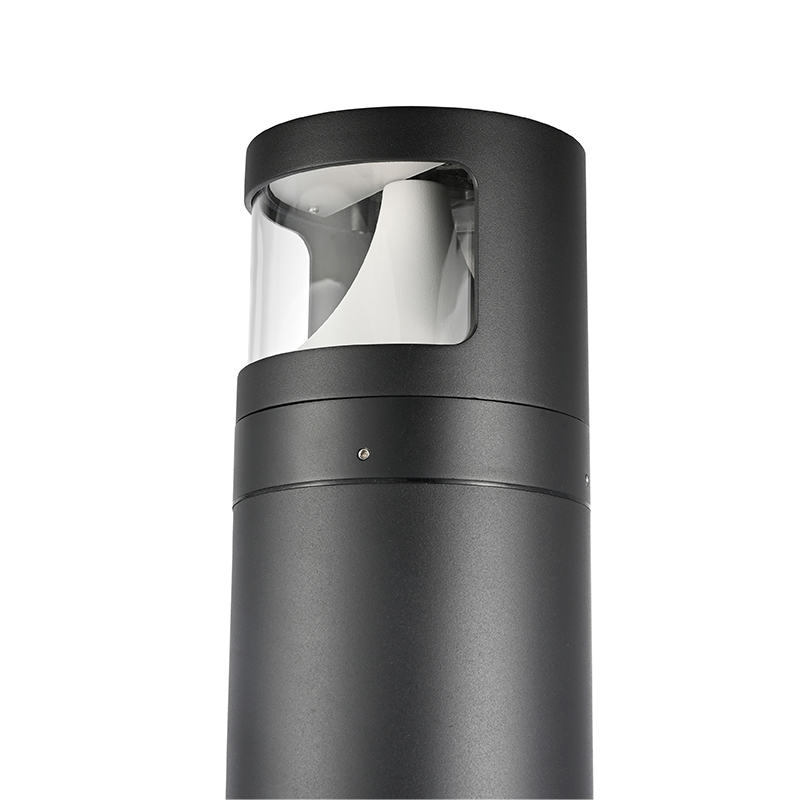

The lamp body is made of integrated die-cast 6063-T5 aluminum, paired with an optical-grade polycarbonate diffuser. It features a fully sealed structure and a surface coated with UV-resistant polyester powder coating. RAL color customization is available, and an optional anti-salt spray treatment exceeding 1000 hours is offered. With an IP65/IK09 protection rating, it can operate stably for extended periods in complex outdoor environments, including those with moisture, dust, and potential impacts.
CRI Colour Rendering Index: 70,80(Optional)
LED Chips: Philips3030、Philips2835、CREE COB、E27
CCT: 2200K-6500K
RAL finish on request; anti-UV polyester powder coating surface, salt spray resistance over 1,000 hours (optional)
Body Material: Die-cast aluminium,6063-T5
Power supply: AC 100-277 Vac; 50/60 Hz.
Useful life > 50,000h (Ta= 25°C)
IP65 / IK09

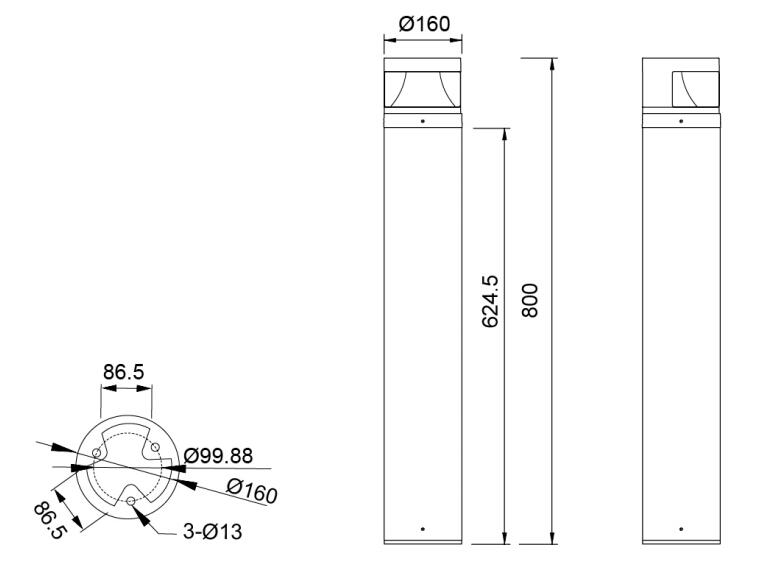

Net weight: 600mm 4.5KG/800mm 5KG/1000mm 5.5KG
Operating temperature: -30°C to +50°C.
Available options: DALI, ON/OFF
| Protection grade | Corrosion-proof capability | Working condition | Isolation class | Power voltage | Max power |
| IP65 | Class II | -35℃ ~ +45℃ | Class I | 120~277V 50/60Hz | 10W(SMT) |
| IP65 | Class II | -35℃ ~ +45℃ | Class I | 120~277V 50/60Hz | 20W(SMT) |
RAL and Height finish on request

Samples: Typically 7 working days.
Bulk Orders: Approximately 14-21 working days after receiving the deposit and confirming all specifications.
We accept payments in USD via T/T. The standard terms are:
30% deposit before production, 70% balance before shipment.
For orders below $1000 USD, full payment (100%) is required via T/T.
Our quotations are typically based on EXW or FOB trade terms.
Yes, we offer professional OEM/ODM customization services to meet specific requirements in product design, performance, and packaging.
With extensive experience in non-standard customized products, our engineering team is able to provide technical solutions and initial feedback within 12 hours.
Standard packaging includes brown outer cartons and brown inner boxes.
For orders of any quantity, we offer customization services, including: Laser-engraved logos on the lamp body. Custom-designed color boxes and cartons with your logo.
Considering that most of our customers are involved in engineering projects, we don't have an MOQ.
Our products comply with international standards, with CE and RoHS certifications for all categories. Some of the garden lights and street lamps also have ETL and ENEC certifications.
