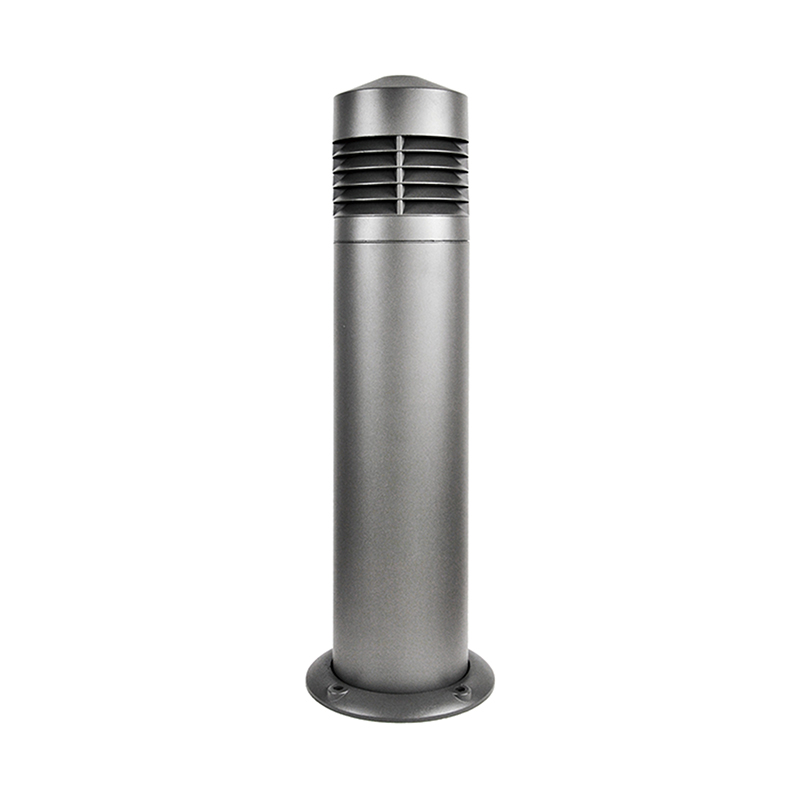

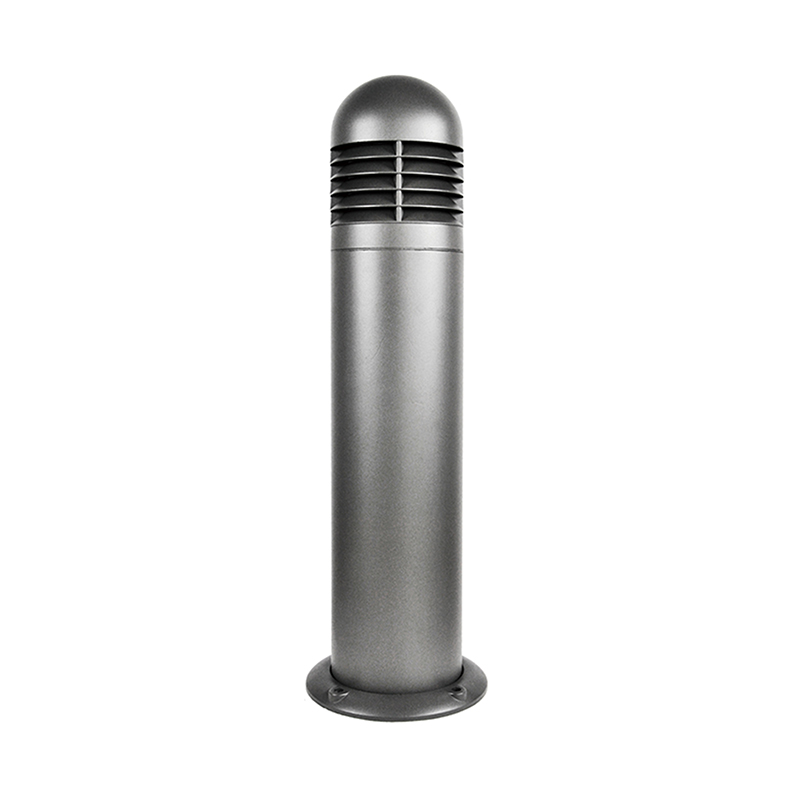

The YMLED-6204A is a modern-style COB LED in-ground light designed for outdoor garden and landscape lighting. It features a robust and durable die-cast aluminum (6063-T5) body and utilizes high-quality LED chips such as Philips 3030, Philips 2835, CREE COB, or E27, offering a selectable CRI of 70 or 80. The color temperature ranges from 2200K to 6500K, meeting diverse lighting needs.
The fixture supports RAL color customization and features an anti-UV polyester powder coating, with optional corrosion resistance treatment exceeding 1000 hours of salt spray testing. The power supply is compatible with AC 100-277Vac, 50/60Hz, and has a lifespan exceeding 50,000 hours at 25°C. It boasts an IP65 dustproof and waterproof rating and IK08 impact resistance, operating within a temperature range of -30°C to +50°C. Optional features include DALI or ON/OFF control, and it is available in three heights: 600mm, 800mm, and 1000mm, with net weights of 4.5KG, 5KG, and 5.5 kg, respectively, making it a reliable choice for garden and courtyard lighting.
CRI Colour Rendering Index: 70,80(Optional)
LED Chips: Philips3030、Philips2835、CREE COB、E27
CCT: 2200K-6500K
RAL finish on request; anti-UV polyester powder coating surface, salt spray resistance over 1,000 hours (optional)
Body Material: Die-cast aluminium,6063-T5
Power supply: AC 100-277 Vac; 50/60 Hz.
Useful life > 50,000h (Ta= 25°C)
Waterproof Protection & Impact Protection Rating: IP65/IK08

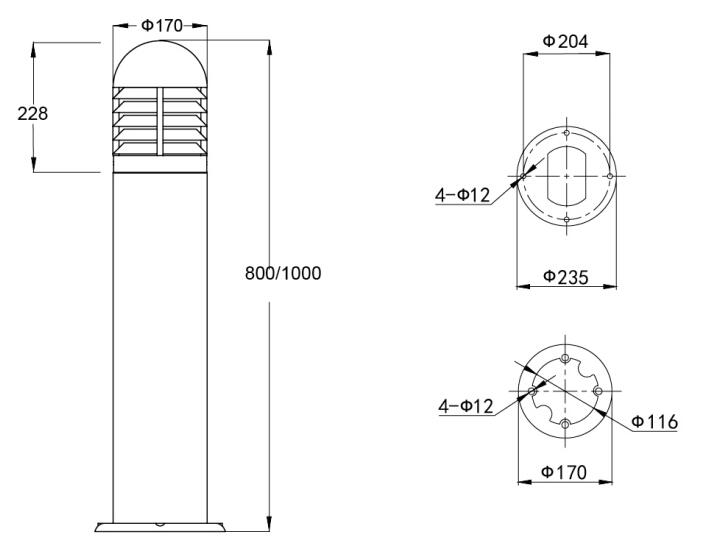

Net weight: 600mm 4.5KG/800mm 5KG/1000mm 5.5KG
Operating temperature: -30°C to +50°C.
Available options: DALI, ON/OFF
| Protection grade | Corrosion-proof capability | Working condition | Isolation class | Power voltage | Max power |
| IP65 | Class II | -35℃ ~ +45℃ | Class I | 220V(±10%)/50Hz | 15W(E27) |
| IP65 | Class II | -35℃ ~ +45℃ | Class I | 100~240V/50Hz | 14W(COB) |
RAL and Height finish on request

Samples: Typically 7 working days.
Bulk Orders: Approximately 14-21 working days after receiving the deposit and confirming all specifications.
We accept payments in USD via T/T. The standard terms are:
30% deposit before production, 70% balance before shipment.
For orders below $1000 USD, full payment (100%) is required via T/T.
Our quotations are typically based on EXW or FOB trade terms.
Yes, we offer professional OEM/ODM customization services to meet specific requirements in product design, performance, and packaging.
With extensive experience in non-standard customized products, our engineering team is able to provide technical solutions and initial feedback within 12 hours.
Standard packaging includes brown outer cartons and brown inner boxes.
For orders of any quantity, we offer customization services, including: Laser-engraved logos on the lamp body. Custom-designed color boxes and cartons with your logo.
Considering that most of our customers are involved in engineering projects, we don't have an MOQ.
Our products comply with international standards, with CE and RoHS certifications for all categories. Some of the garden lights and street lamps also have ETL and ENEC certifications.
