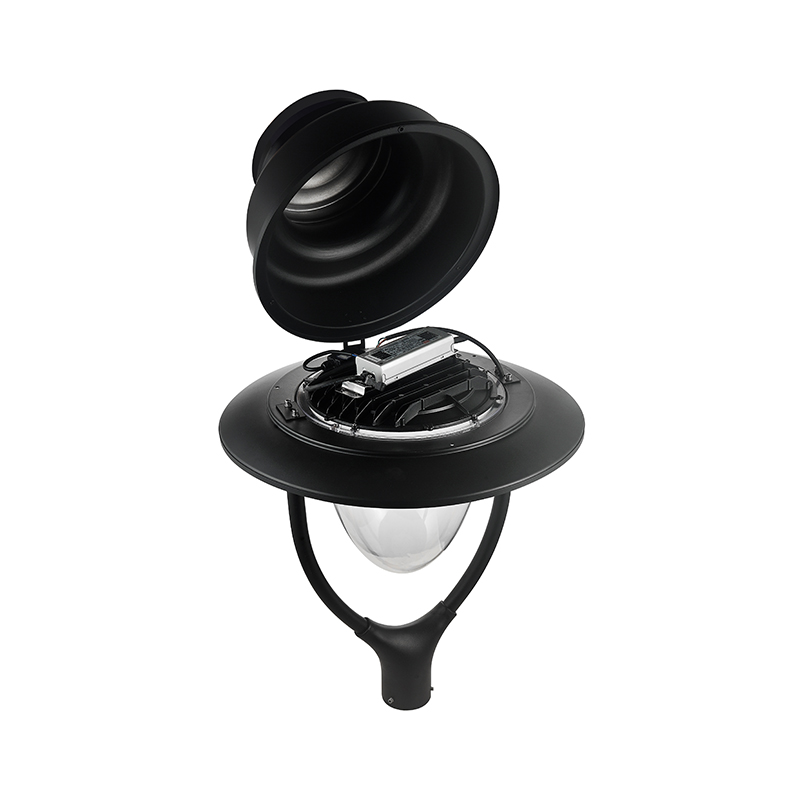

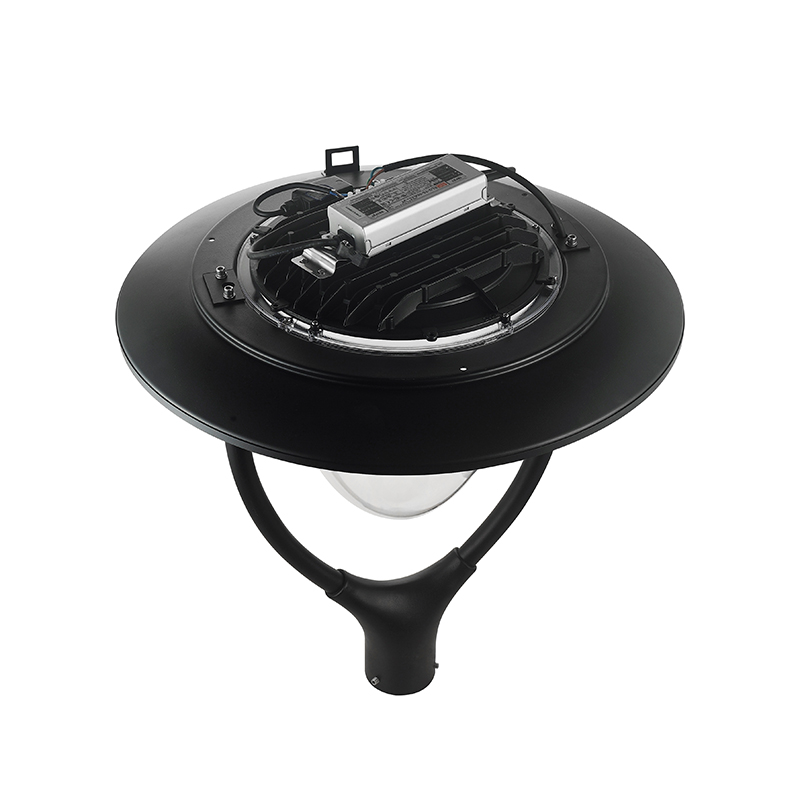

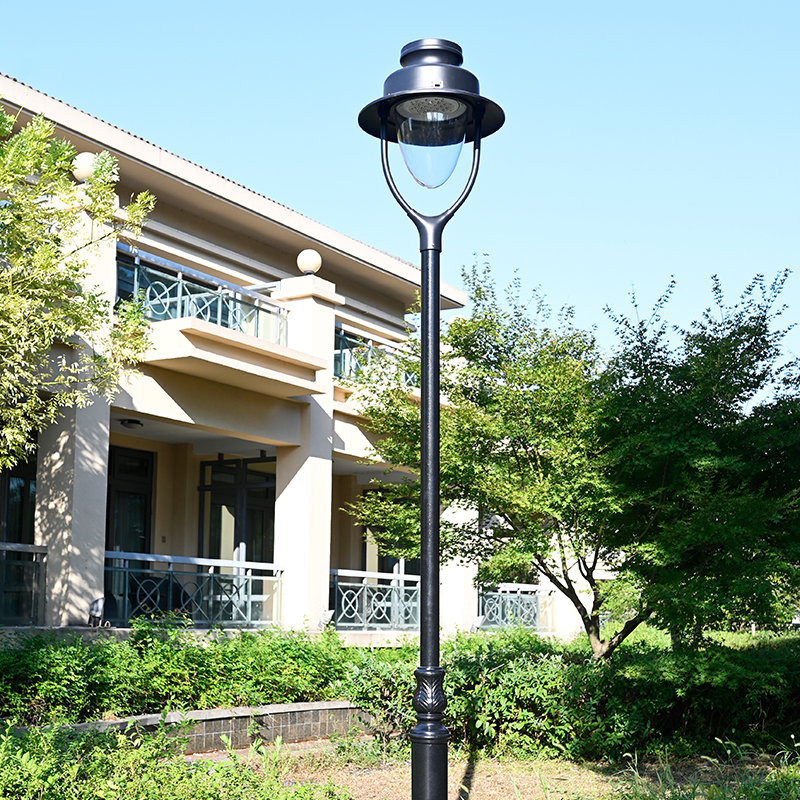

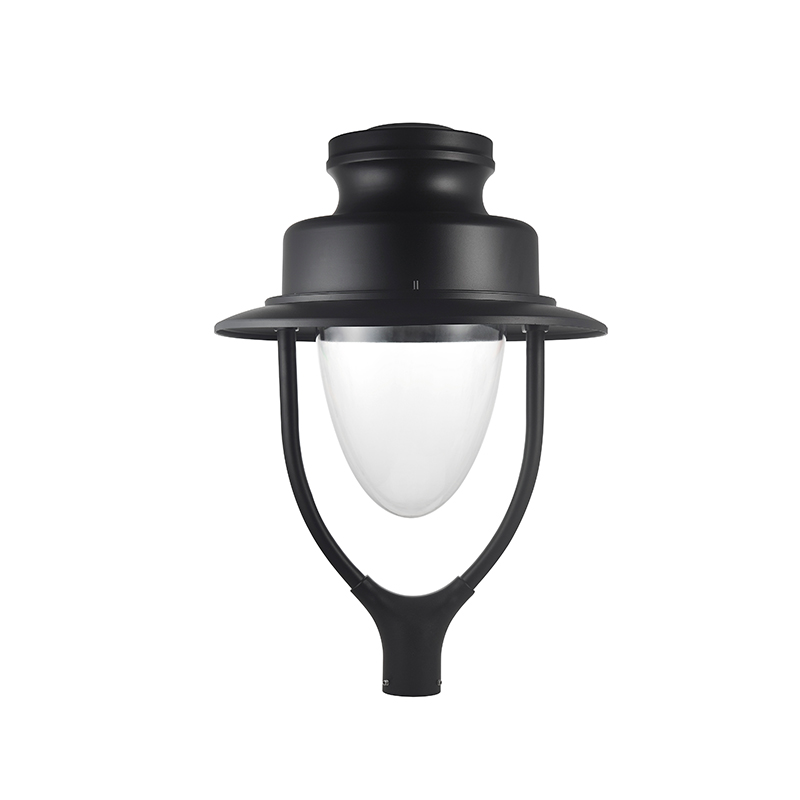

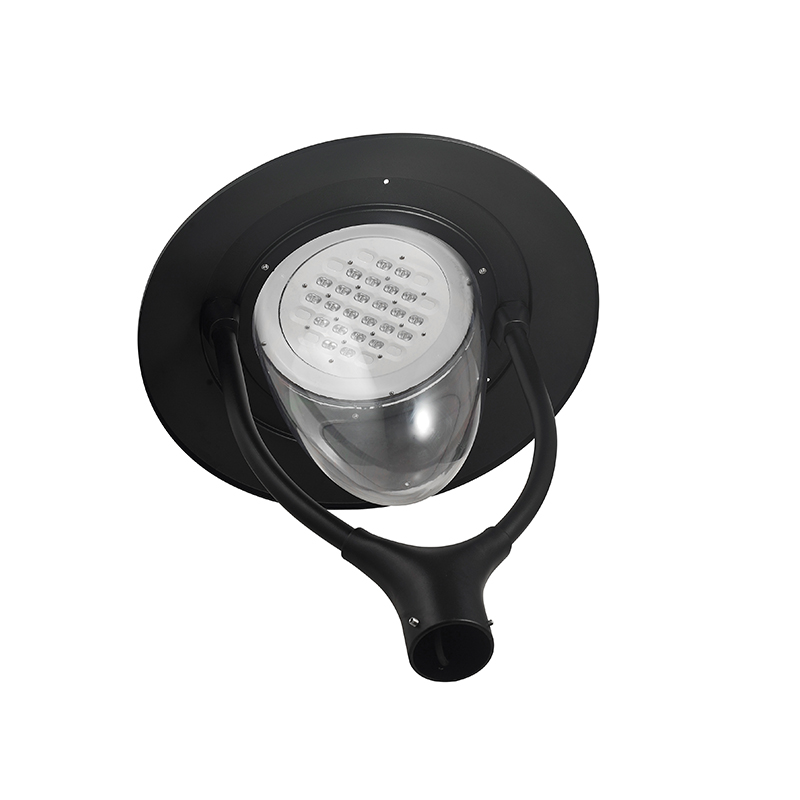

The YMLED-6139B is an outdoor LED landscape light emphasizing modern aesthetics, designed specifically for courtyards, parks, commercial walkways, and other similar settings. With its simple and elegant design and stable performance, it offers a lighting solution that is both decorative and practical.
The lamp body is made of die-cast aluminum 6063-T5 with a UV-resistant polyester powder coating on the surface, supporting RAL color customization. Optional features include over 1000 hours of salt spray resistance, IP65 dustproof and waterproof rating, and IK08 impact resistance, easily handling complex outdoor environments.
The light source supports high-quality LEDs such as Philips 5050 and CREE XTE/XPG, with adjustable color temperature from 2200K to 6500K, and selectable CRI of 70/80. It features wide voltage compatibility for global power grids, a lifespan exceeding 50,000 hours, and optional 110kV overvoltage protection.
It offers DALI/0-10V/PWM dimming and NEMA/Zhaga/sensor expansion options, making it a modern, aesthetically pleasing, durable, reliable, and intelligently upgradeable outdoor lighting solution.
CRI Colour Rendering Index: 70,80(Optional)
LED Chips: Philips5050, CREE XTE, CREE XPG, Ledstar 5050
CCT: 2200K-6500K
Body Material: Die-cast aluminium,6063-T5
RAL finish on request; anti-UV polyester powder coating surface, salt spray resistance over 1,000 hours (optional)
Power supply: AC 100-277 Vac; 50/60 Hz.
Useful life > 50,000h (Ta= 25°C)
Waterproof Protection & Impact Protection Rating: IP65/IK08
Overvoltage protection: 10kV (optional)
Operating temperature: -30°C to +50°C
Net weight: 8.6/7.6(kgs)
Available options: DALI, 0-10V, PWM, 4Di.
Optional: 5- to 7-pin NEMA connector, Zhaga, and sensors
| Product Code | Rated Power | LED Qty | Luminous Flux | G.W/N.W | Packing Size | Loading Qty |
| YMLED-6139B(16) | 30W | 16 | 3750 | 8.6/7.6(kgs) | 600x600x540mm | 108PCS/20'GP 228PCS/40'HQ |
| YMLED-6139B(20) | 40W | 20 | 5000 | 8.6/7.6(kgs) | 600x600x540mm | |
| YMLED-6139B(24) | 55W | 24 | 6600 | 8.6/7.6(kgs) | 600x600x540mm | |
| YMLED-6139B(28) | 60W | 28 | 7200 | 8.6/7.6(kgs) | 600x600x540mm | |
| YMLED-6139B(32) | 70W | 32 | 8610 | 8.6/7.6(kgs) | 600x600x540mm | |
![]() |
![]() |
![]() |
| Material: PC
Angle: TYPE2
Chip: 5050 3030×4 7070
Size: 50×50
Order Code: 3292
|
Material: PC
Angle: TYPE3
Chip: 5050 3030×4 7070
Size: 50×50
Order Code: 3293
|
Material: PC
Angle: TYPE4
Chip: 5050 3030×4 7070
Size: 50×50
Order Code: 3294
|
![]() |
![]() |
|
| Material: PC
Angle: TYPE5
Chip: 5050 3030×4 7070
Size: 50×50
Order Code: 3295
|
Material: PC
Angle: 100×160
Chip: 5050 3030×4 7070
Size: 50×50
Order Code: 2581
|
RAL finish on request

Samples: Typically 7 working days.
Bulk Orders: Approximately 14-21 working days after receiving the deposit and confirming all specifications.
We accept payments in USD via T/T. The standard terms are:
30% deposit before production, 70% balance before shipment.
For orders below $1000 USD, full payment (100%) is required via T/T.
Our quotations are typically based on EXW or FOB trade terms.
Yes, we offer professional OEM/ODM customization services to meet specific requirements in product design, performance, and packaging.
With extensive experience in non-standard customized products, our engineering team is able to provide technical solutions and initial feedback within 12 hours.
Standard packaging includes brown outer cartons and brown inner boxes.
For orders of any quantity, we offer customization services, including: Laser-engraved logos on the lamp body. Custom-designed color boxes and cartons with your logo.
Considering that most of our customers are involved in engineering projects, we don't have an MOQ.
Our products comply with international standards, with CE and RoHS certifications for all categories. Some of the garden lights and street lamps also have ETL and ENEC certifications.
